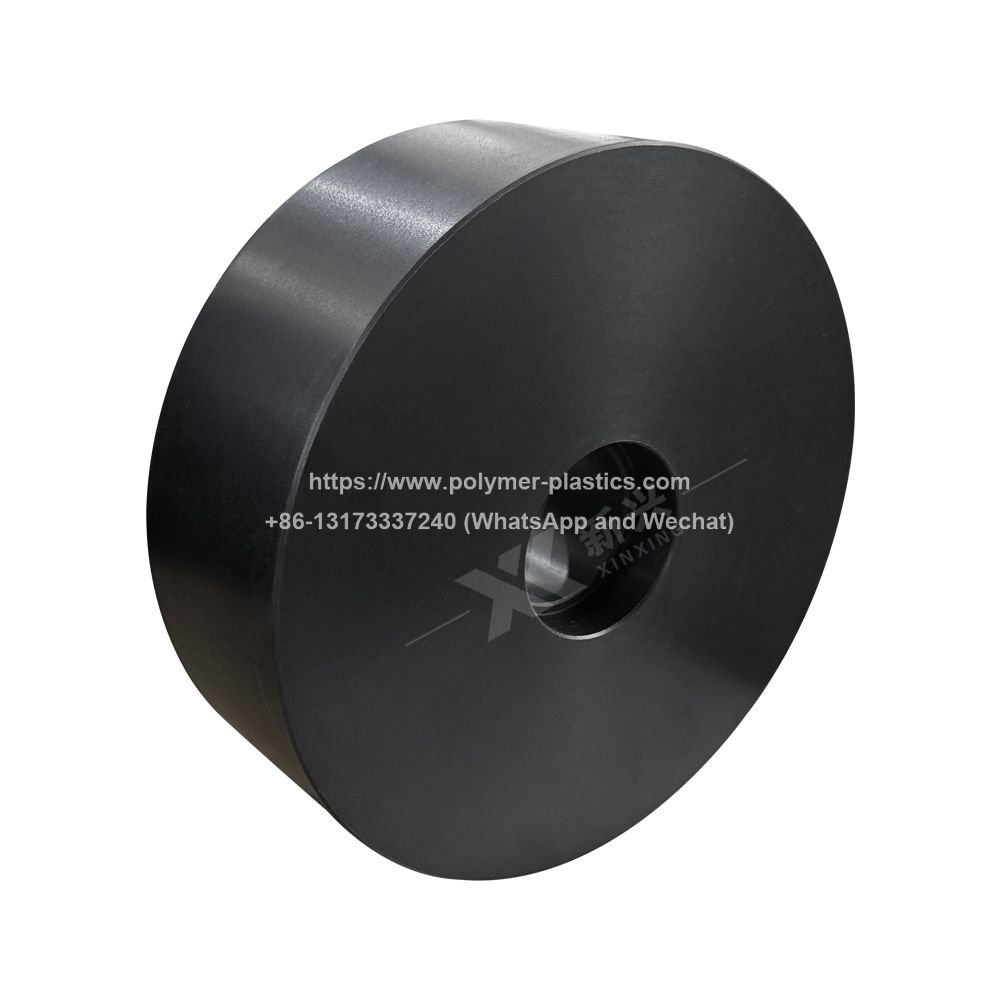

UHMWPE conveyor idler :

uhmwpe pile guide roller

uhmwpe port crane roller

uhmwpe port crane idler

Our new generation of ultra high molecular weight polyethylene(UHMWPE)roller is designed for the toughest applications.

Due to it's strengthened frame construction, Xinxing Roller can replace heavy duty steel rollers. Xinxing Roller’s self-cleaning surface greatly reduces the risk of buildup from carryback material-the main cause of belt tracking problems, material spillage, premature wear and failure of steel rollers.

● Belt Friendly

Highly wear resistance, 5-7 times stronger

than steel roller

Self-lubricating, don't absorb water.

● Light Weight

Easy to carry;

Less power consumption, smaller motor

required.

● Excellent T.I.R

T.I.R ≤ 0.1mm.

● Zero Build-ups

No belt mis-tracking,less down time.

● Significantly improve the life of bearing

Designed Roller working life is 60,000hours.

● Patented Water & Dust Proof Sealing System

● Anti Corrosive & No Rust

Inquire Now Next Product

Description

Ultra-high molecular weight polyethylene (UHMWPE) belt conveyor roller is a high-tech product,which consists of uhmwpe pipe,metal bearing ,metal shaft , plastic bearing housing , sealing ring and so on . Compared with metal roller , uhmwpe plastic roller has many obvious advantages in performance.

The UHMWPE Plastic Conveyor Belt Roller retains all the excellent properties of ultra-high molecular weight polyethylene, with anti-friction self-lubrication, impact resistance, noise and vibration elimination, anti-adhesion, anti-corrosion, anti-aging and so on. After being put on the market, the UHMWPE Plastic Conveyor Belt Roller has withstood the test of long-term use and has been well received by customers. It is widely used in metallurgical mines, coal mines, chemical industry, grain storage, building materials, ports, salt fields, electric power and other industries. The best alternative.

Since most of the rollers are exposed to dust and water pollution, and the material is worn or corroded by the roller body, the ideal roller must have three core technologies:

The labyrinth seal that never contaminates. Technology;
roller manufacturing precision, consistency of technology;
roller body anti-corrosion and wear-resistant technology.

Performance of products
1.Good performance of self-lubrication , wear resistance and no caking. The surface of roller is not easy to scale .
2.Low friction coefficient and it is good for belt.
3.Flexible and smooth movement , and low driving power consumption .
4.Light weight , easy installation and replacement . Reduce the labor intensity and maintenance.
5.The labyrinth seals makes waterproof and dustproof effect more significant.

The Technical Parameters Of Conveyor Roller

	Item	Unit	Index
1	Radial circular run-out	mm	≤0.50
2	Axial drifting	mm	≤0.70
3	Rotation resistance	N	≤2.50
4	After-falling off axial displacement	mm	≤1.50
5	After-falling off rotation resistance	N	≤3.75

uhmwpe conveyor idler features:

Can control the bearing life cycle, planned predictive maintenance;

Solving the contradiction that the traditional roller sealing performance is good and the rotation resistance is correspondingly large;

Extend the life of the tape, roller rubber surface, reducer and motor by more than 5 times;

Exempting a large amount of manpower and material resources for maintenance;

Significantly reduce the labor intensity of workers and improve their health;

The different environments can choose different materials of the roller, the most reasonable investment and operating costs;

Reduce downtime, improve the overall economic benefits of transportation 5-8 times.

Size

Specification	Length (customize)	Bearing (HRB. FAG.SKF)	Pipe wall’s thickness (customize)
Ф89	150-2000	6204/6205	8-12
Ф102	150-2000	6204/6205/6305	8-12
Ф108	150-2000	6204/6205/6305/6306	8-12
Ф114	150-2000	6204/6205/6305/6306	8-12
Ф127	150-2000	6204/6205/6207/6305/6306	8-12
Ф133	150-2000	6204/6205/6207/6305/6306	8-12
Ф159	150-2000	6204/6205/6207/6305/6306/6307/6308	8-15

Color

white, black, yellow, green, blue, red, orange

Applications

Coal industry

Cement industry

metal industry

Power industry

Chemical industry

Conveying systems in industries such as coking
