UHMWPE crane outrigger pad and block :

uhmwpe stabilizer pad

uhmwpe cribbing and stabilizer pad

uhmwpe cribbing pad

Inquire Now Next Product

Description

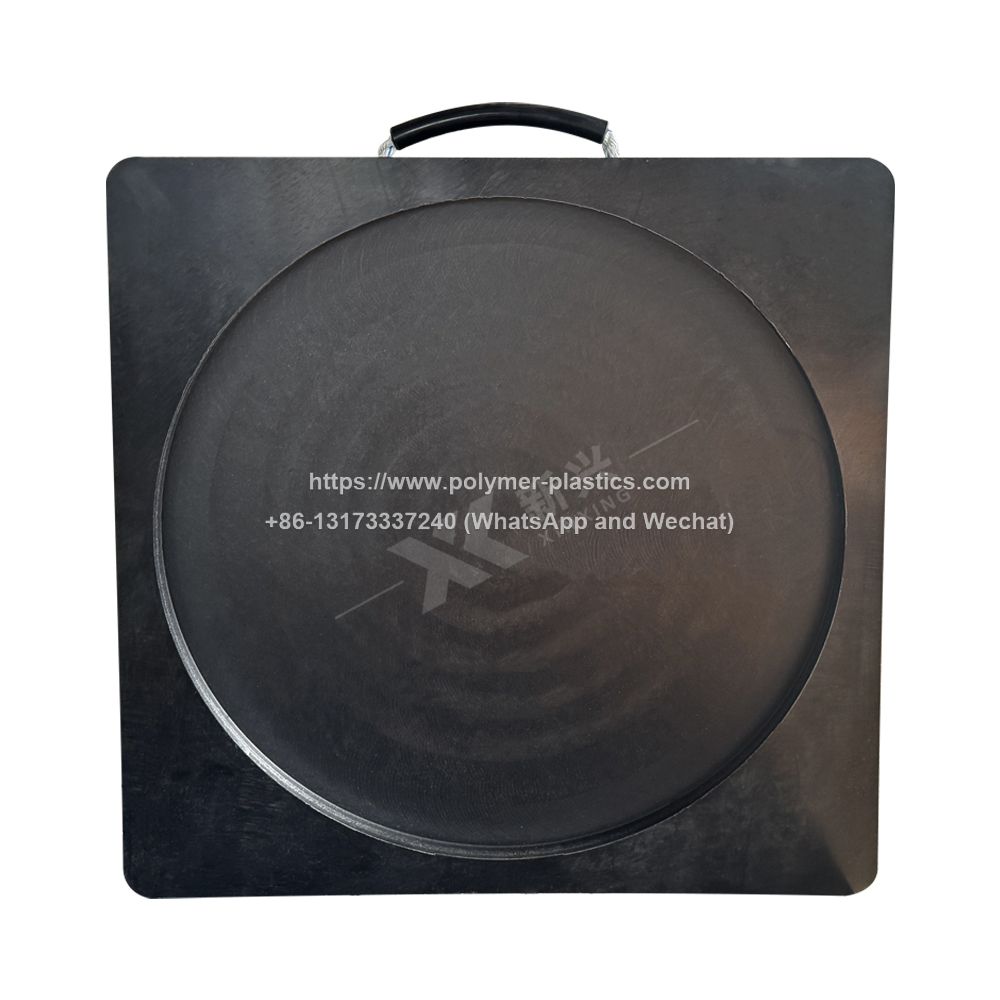

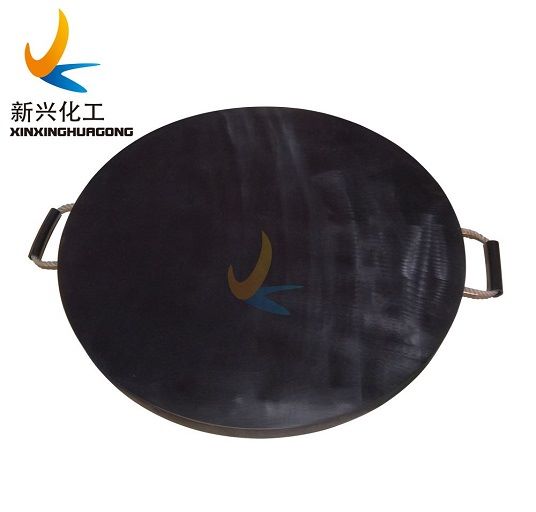

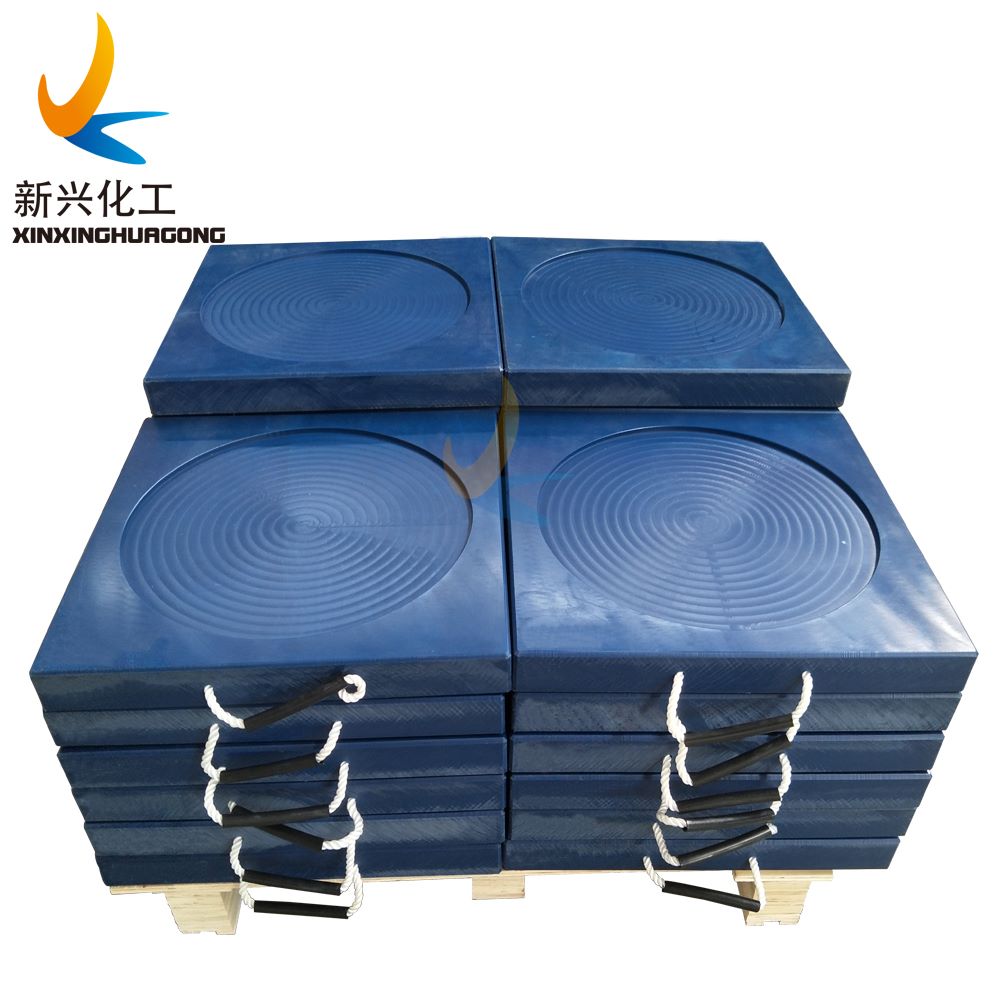

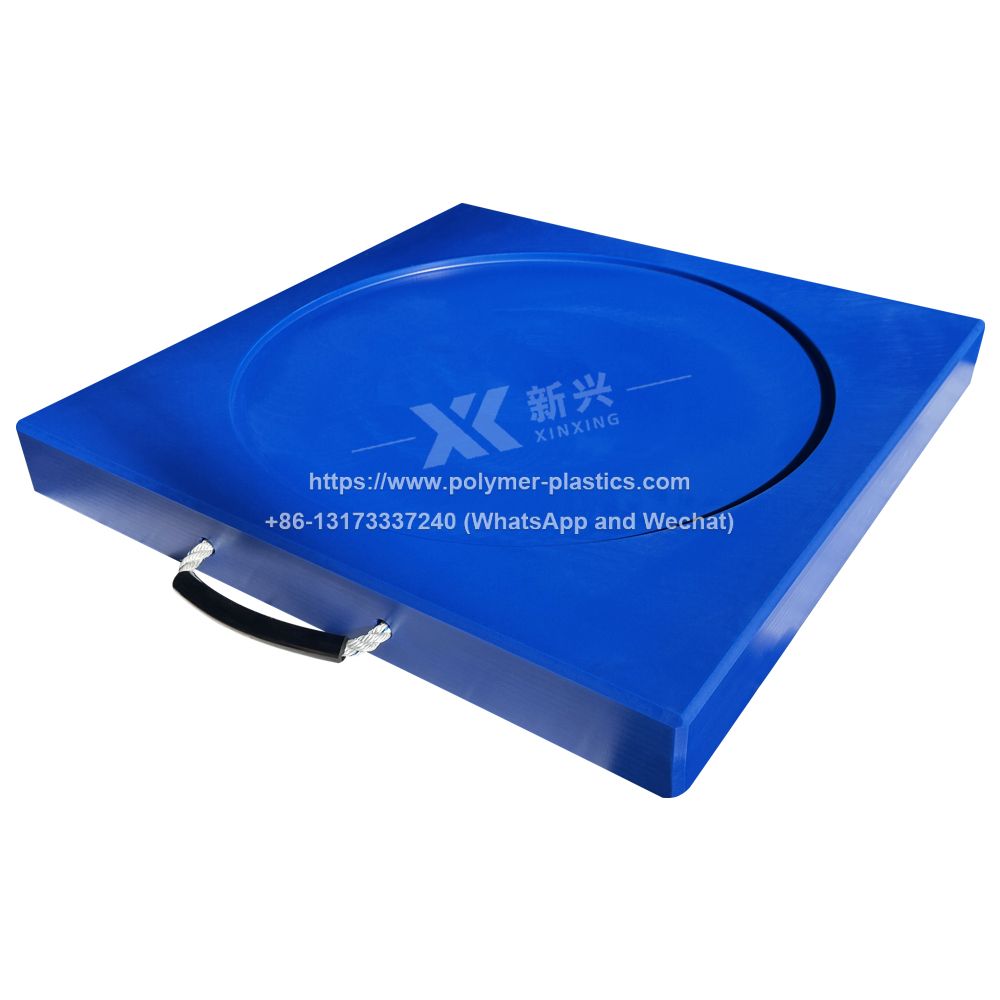

Portable and rigid UHMWPE plastic outrigger pads/jack pads/cribbing plate for crane truck

Portable and rigid UHMWPE plastic outrigger pads/jack pads/cribbing plate for crane truck are made from ultra high molecular weight polyethylene, an engineering material that offers a superior combination of impact strength, wear and chemical resistance.

Each pad is equipped with a durable wire handle to allow for easy storage and mobility. Portable and rigid UHMWPE plastic outrigger pads/jack pads/cribbing plate for crane truck are an alternative to wood pads due to their superior characteristics and performance which allows them to last longer.

Xinxing outrigger pads supply a range of lightweight and long-lasting spreader plates that offer stable support when operating cranes, aerial work platforms and mobile plant. Made from high quality, heavy duty UHMW polyethylene, our range of outrigger pads offer protection against water, corrosion and splintering – a huge advancement over the more traditional wooden and steel alternatives.

Stable support is achieved by spreading the load from the stabiliser or outrigger foot over the large and tough surface of an outrigger pad or crane mat. The overall pressure on the ground is reduced by applying the load over a wider surface area, and effectively supporting the machinery or vehicle. Our range of outrigger pads are durable yet lightweight, making them safe and easy to handle.

Xinxing crane outrigger pads can be used not only as crane leg pads, but also the trailer plates, sleeper of heavy machinery track mats of heavy trucks. The pads are strong and solid designed to support your crane.

Outrigger pads offer a wide variety of products covering most applications, with vertical load bearing capacities from 5 to 70 tonnes and prices to suit all budgets.

Size

Thinckness	Size	Load Capacity(TONS)		Weight
MM	MM	45°	Vertical	KGS
25MM	500*500	30	55	6.25
	600*600	35	60	9
	800*800	40	81	16
	1000*1000	43	93	25
	1200*1200	50	130	36
	Dia.800	38	78	12.5
	Dia.1000	41	91	20
	Dia.1200	48	110	28
40mm	500*500	31	56	10
	600*600	36	61	14.4
	800*800	42	82	25.6
	1000*1000	44	94	40
	1200*1200	51	131	57.6
	Dia.800	40	80	20
	Dia.1000	42	92	32
	Dia.1200	48	130	45
50mm	500*500	31	58	12.5
	600*600	40	62	18
	800*800	43	85	32
	1000*1000	45	98	50
	1200*1200	55	140	72
	Dia.800	41	83	25
	Dia.1000	43	95	40
	Dia.1200	52	137	56
60mm	800*800	43	86	38.4
	1000*1000	45	99	60
	1000*1000	53	133	86.4
	Dia.800	41	84	30
	Dia.1000	42	96	48

Color

black, green, white, grey, orange, red, yellow or customized color

Applications

Crane outrigger pads

Crane foot bearing support

Crane stabilizer pads

Engineered outrigger pad

Heavy duty outrigger pad

Jack outrigger pad

Crane mat

Portable outrigger pad

Uhmwpe outrigger pad

UHMW polyethylene outrigger pad

Crane support pad

Truck foot pads

Mobile crane mats
