Heavy-Duty UHMWPE Plastic Outrigger Pad for Crane Leg Foot Support Trailer Level Pads :

UHMWPE jacking block

UHMWPE jack block

UHMWPE outrigger pad

UHMWPE stabilizer pad

UHMW-PE rigger pad

Inquire Now Next Product

Description

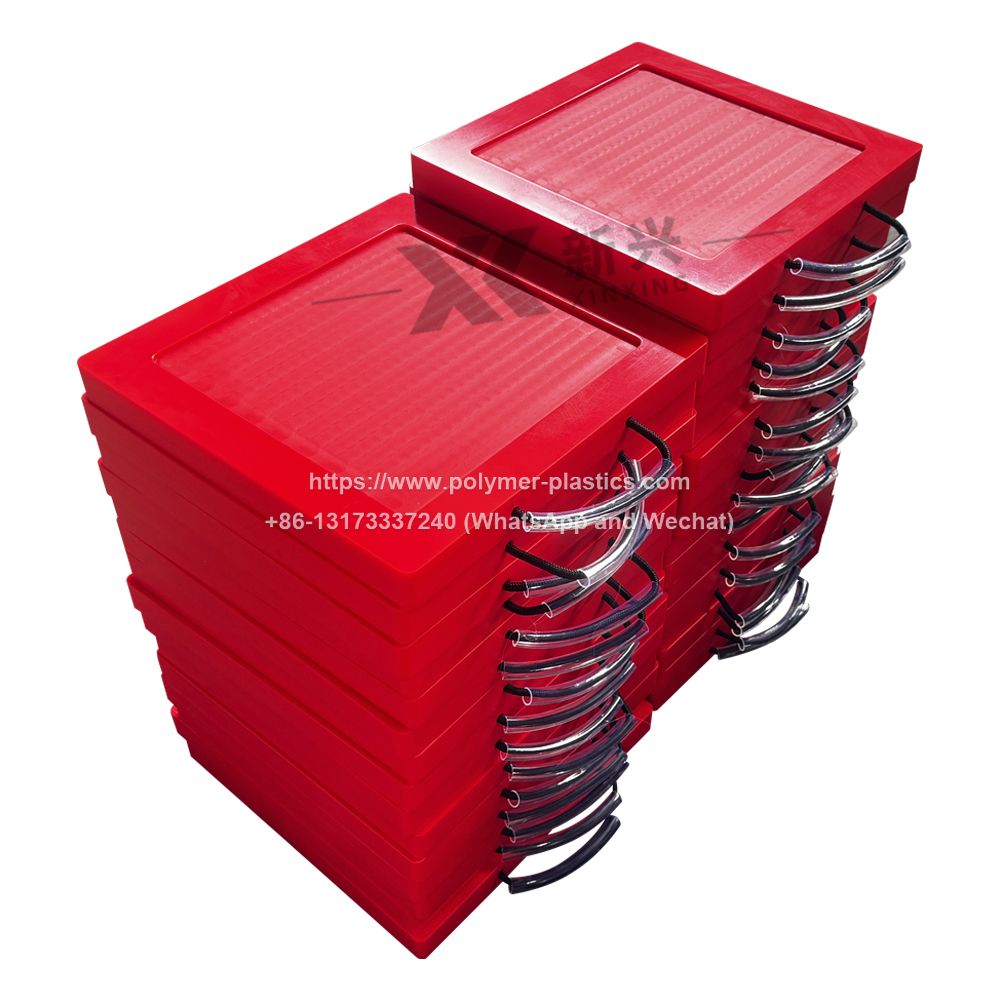

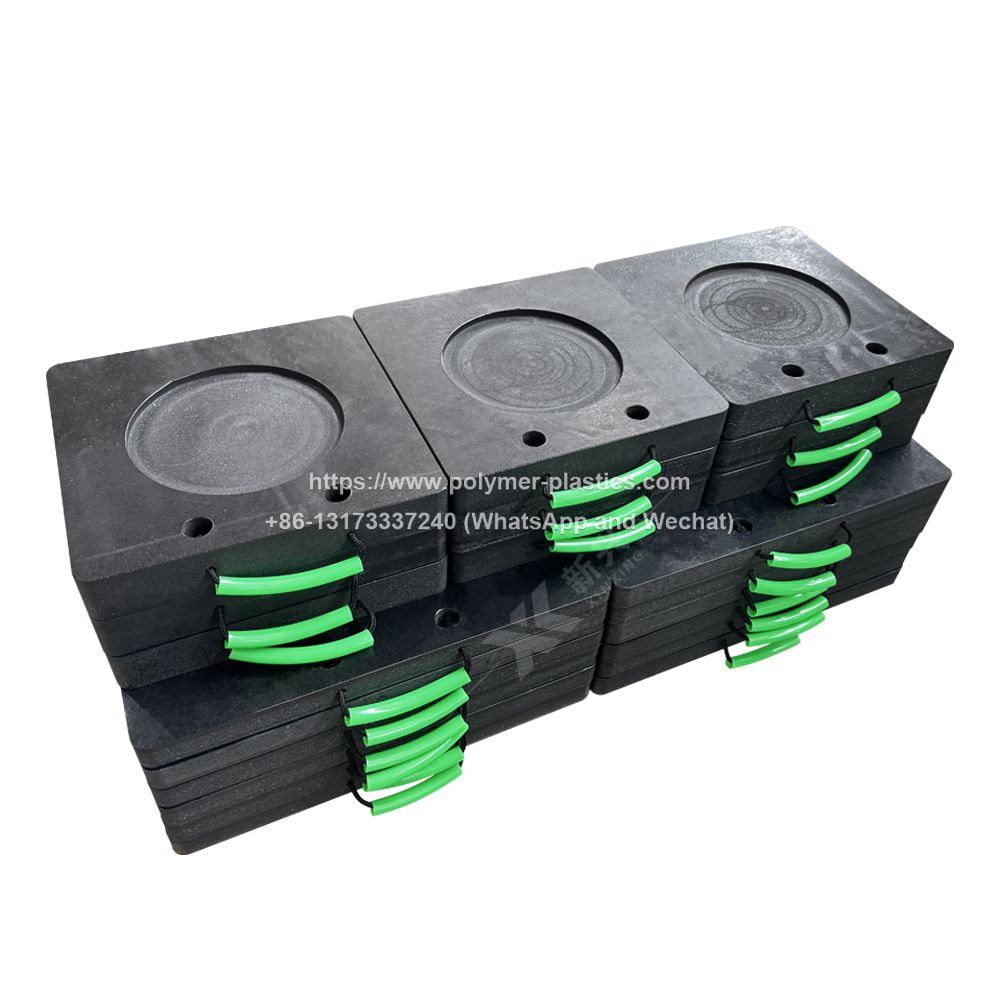

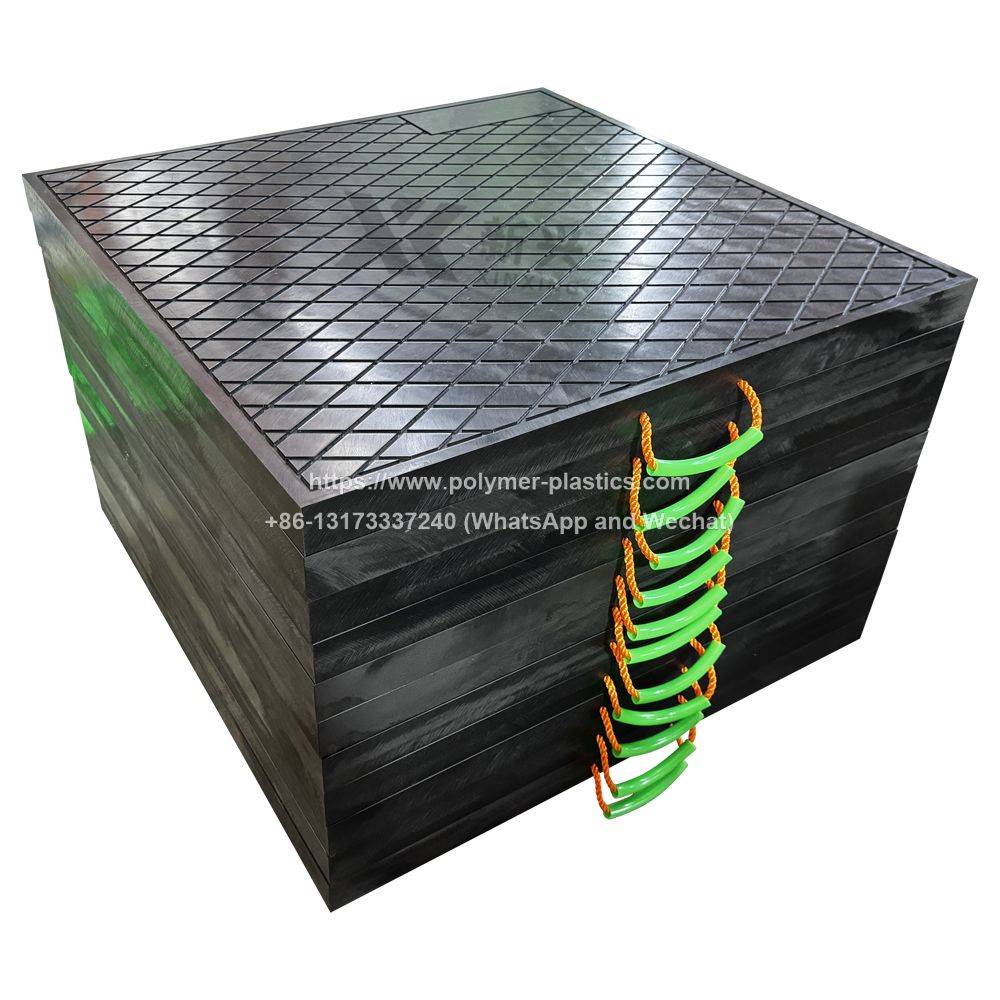

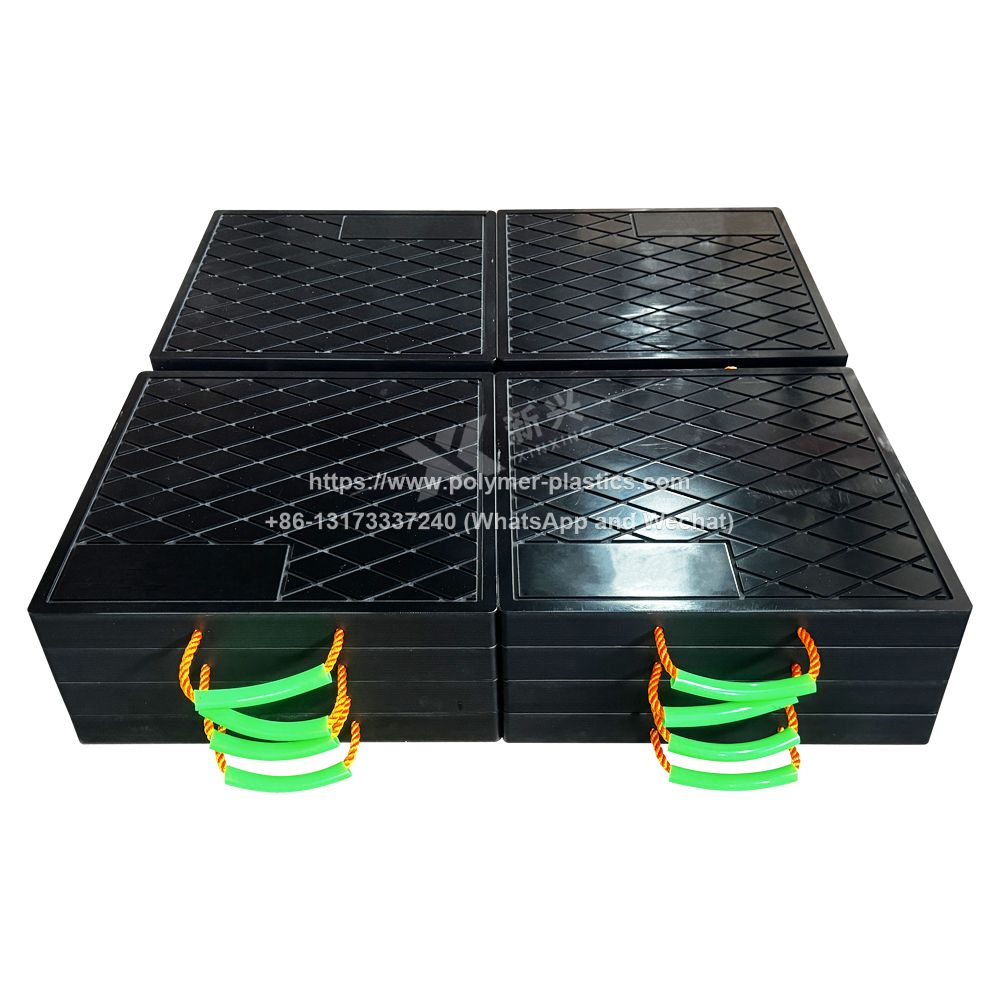

The outrigger pad is mainly used for cushion under the outrigger of the construction machinery, and plays the supporting role.This material has higher strength and stiffness, and then can reduce the deformation of the pad body, and provide more stable supporting force for construction machinery. Water zero absorption, corrosion resistance, this material will not split or corrosion can replace the more traditional wood and steel substitutes, greatly saving the cost of use and improve the quality of work.
Four-corner support of outrigger pad can be used under harsh environment, but not broken. The hand-held rope is made of nylon material, and the end of the hand-held rope is embedded in the base plate body for convenient transportation and arrangement. The process composite uhmwpe leg pad is processed by numerical control machine in the later stage of press molding.

Advantage

1. High Load Capacity:
* UHMWPE can support extremely heavy loads without cracking, deforming, or breaking.
* Ideal for cranes and other heavy machinery with high outrigger loads.
2. Exceptional Wear Resistance:
* UHMWPE is one of the most abrasion-resistant materials available, ensuring a long lifespan even under heavy use.
3. Low Friction:
* The material has a very low coefficient of friction, which allows for easy placement and removal of the pads.
* Reduces wear on both the pad and the ground surface.
4. Impact Resistance:
* UHMWPE can absorb shocks and impacts without damage, making it suitable for rugged environments.
5. Chemical Resistance:
*Resistant to oils, solvents, and many chemicals, ensuring durability in industrial settings.
6. Weather Resistance:
* Performs well in extreme temperatures and is UV-stabilized for outdoor use.
* Resistant to moisture, rot, and corrosion.
7. Lightweight:
* Despite its strength, UHMWPE is lightweight, making it easy to transport and handle.
8. Self-Lubricating:
* Reduces the need for additional lubrication and minimizes maintenance.

Size

Thickness(inch)	Pad Size(inch)	45°Load (tons)	Vertical Load(tons)	Pad Weight(kgs)
2"Square	18x18	14	26	10.30
2"Rectangle	20x24	18	28	15.26
2"Square	24x24	18	28	18.31
2"Square	30x30	19.5	38	28.62
2"Square	36x36	20	44	41.20
2"Square	48x48	25	63	73.25

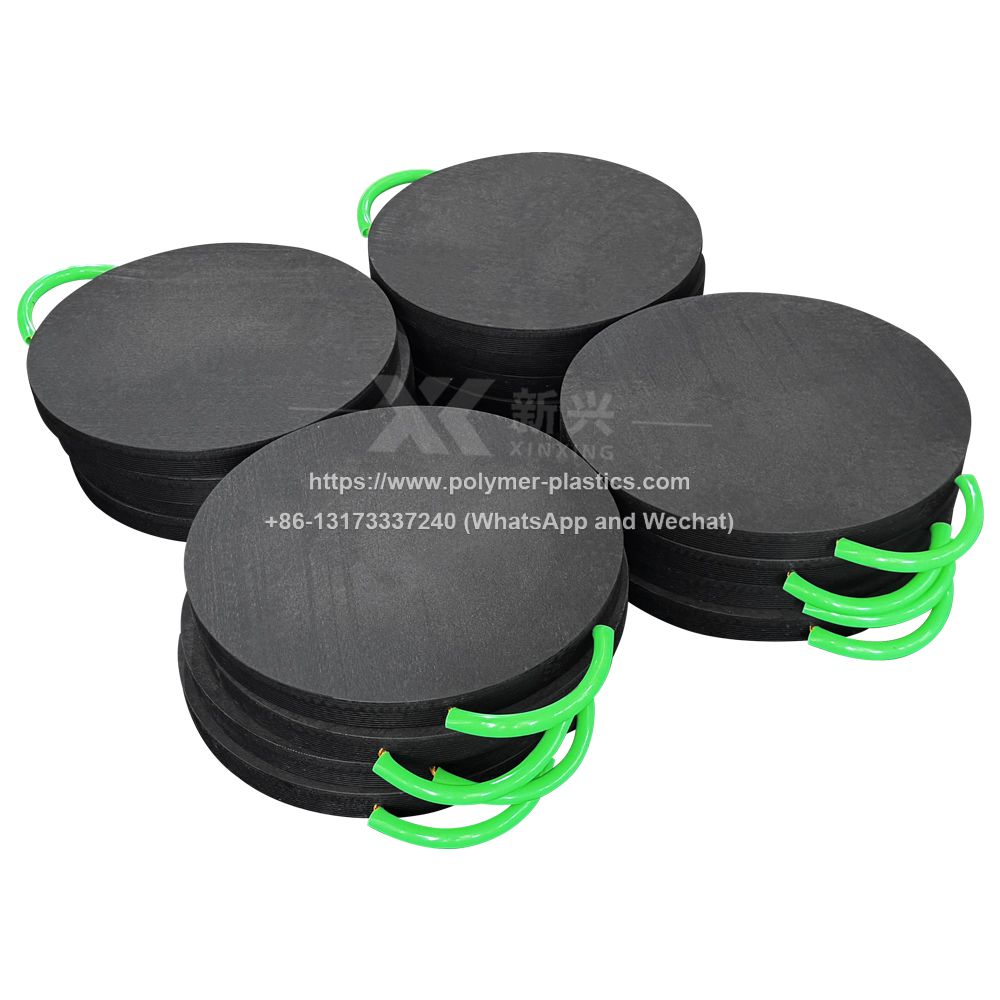

2"Round	30"Dia	15	30	22.47
2"Round	36"Dia	16	32	32.33
2"Round	48"Dia	19	45	57.51
2-1/2"Square	24x24	17.5	28	22.89
2-1/2"Square	30x30	19	39	35.76
2-1/2"Square	36x36	20	45	51.50
2-1/2"Square	48x48	24	60	91.56
2-1/2"Round	30"Dia	15	29	28.09
2-1/2"Round	36"Dia	15.3	33	40.41
2-1/2"Round	48"Dia	19	46	71.88
3"Square	24x24	18	29	27.47
3"Square	30x30	20	40	42.92
3"Square	36x36	22	47	61.80
3"Square	48x48	26	66	109.87
3"Round	30"Dia	15	30	33.70
3"Square	36"Dia	16	36	48.49
3"Square	48"Dia	20	51	86.26
Other size can be customized as your requirement.

Color

Black,yellow,green, red, white, orange, grey, blue (Other colors can be available.)

Applications

1. Construction Sites:
* Stabilize cranes and other heavy equipment on uneven or soft ground.
2. Oil and Gas Industry:
* Provide stability for cranes and rigs in remote or challenging environments.
3. Utilities and Infrastructure:
* Support equipment during maintenance or installation of power lines, pipelines, and other infrastructure.
4. Events and Temporary Setups:
* Stabilize cranes used for stage setups, lighting, or other event equipment.
