Crane leg pads pump car leg pads crane stabilizing pads :

UHMWPE jacking block

uhmwpe jack block

UHMWPE outrigger pad

UHMWPE stabilizer pad

UHMW-PE rigger pad

Inquire Now Next Product

Description

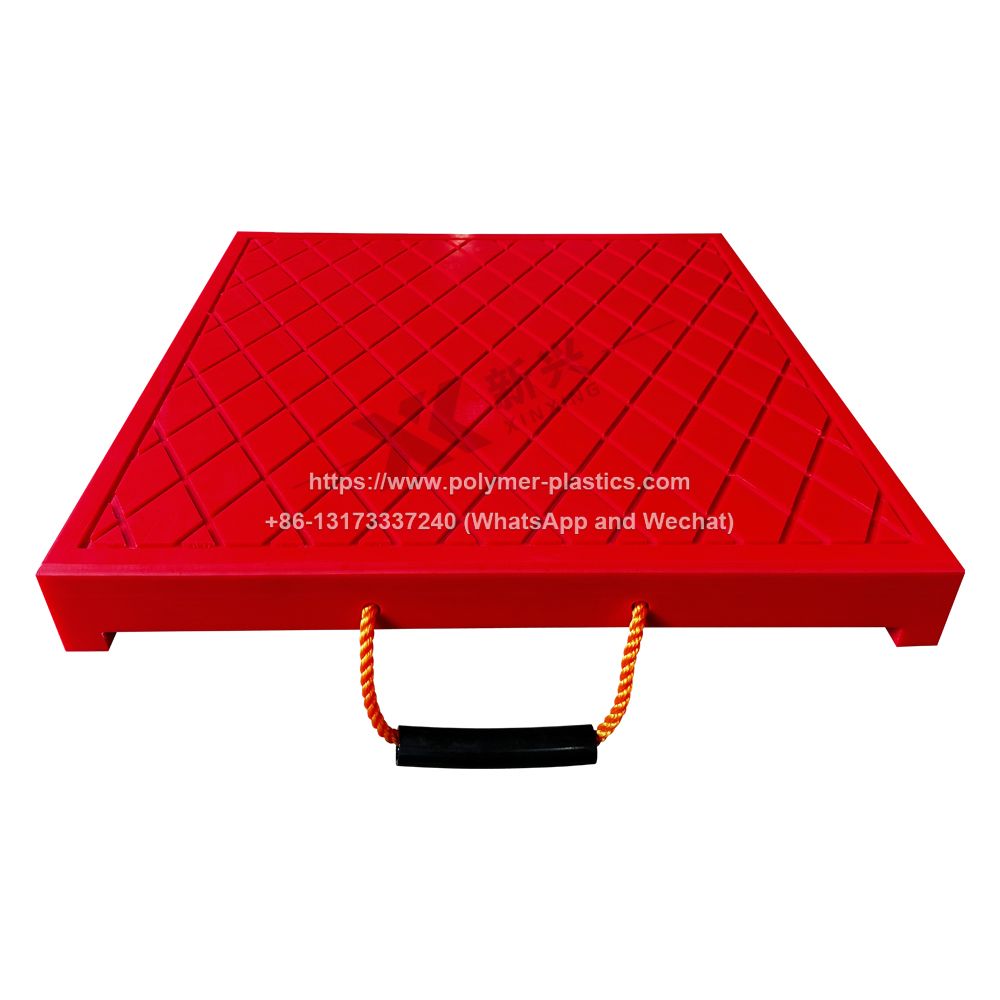

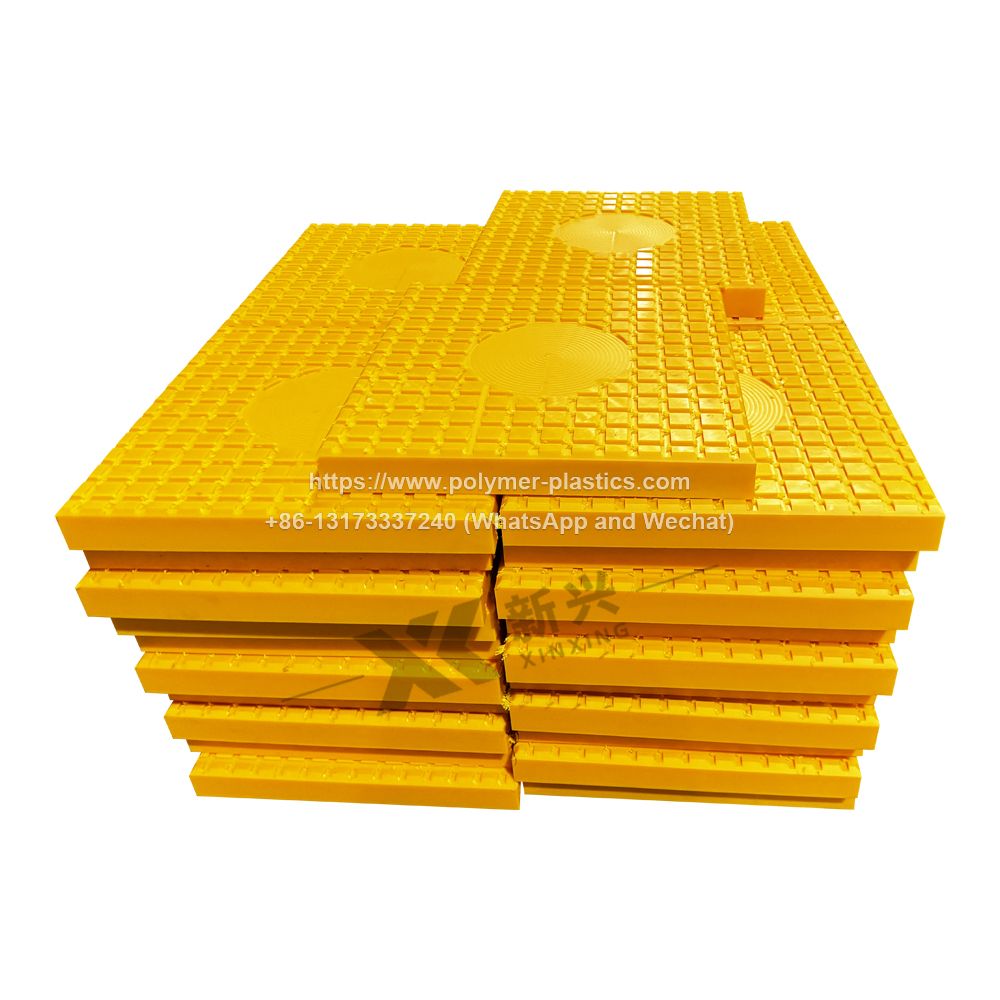

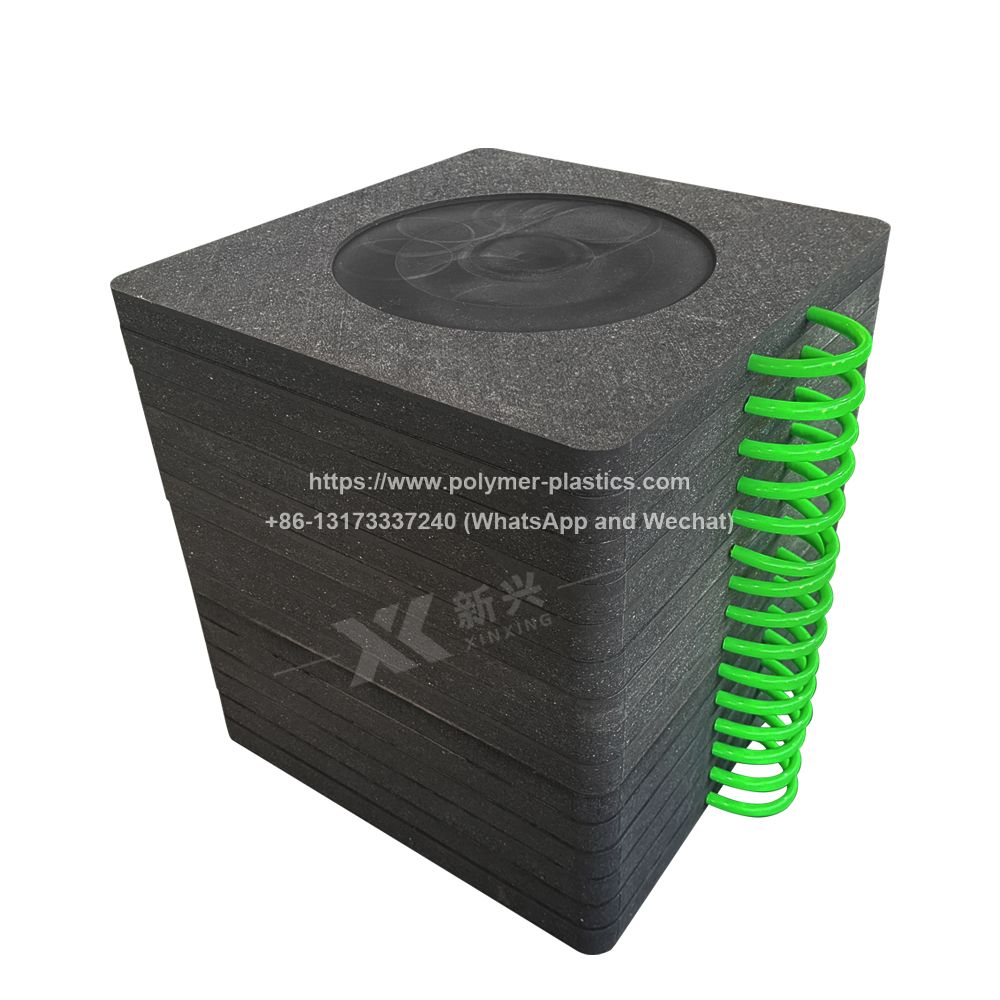

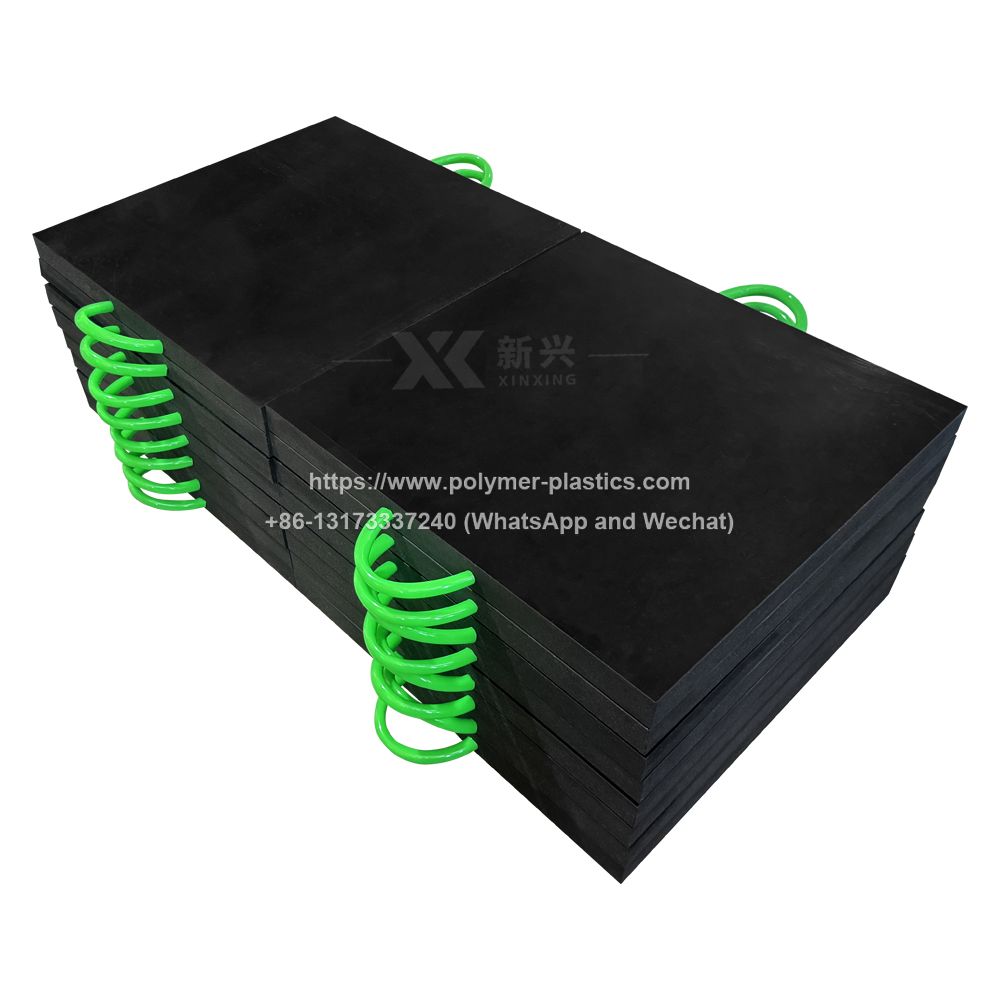

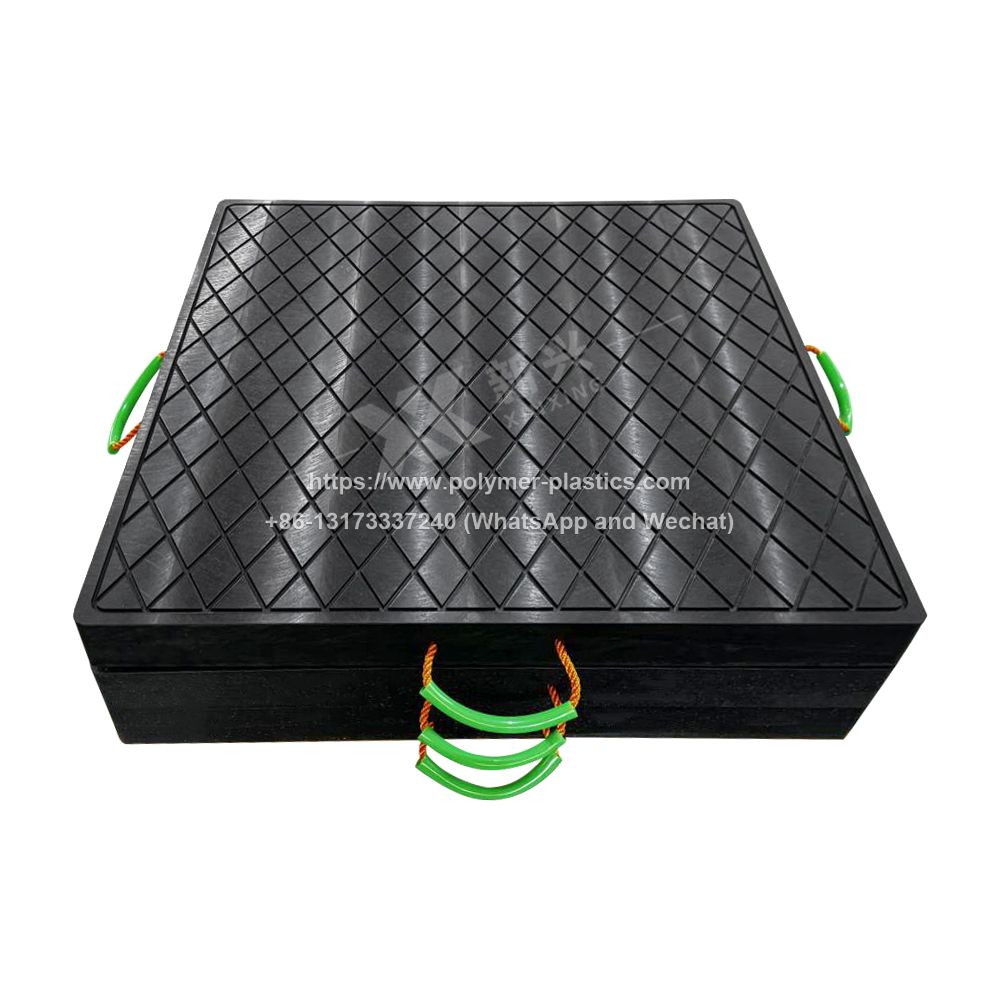

The outrigger pad is a pad placed under the outrigger of the construction machinery, which plays a supporting role.

The support pad can distribute the weight of the construction machinery itself and the lifting weight to the area of the

outrigger pad, ensuring the safety of the ground working environment of the construction machinery. In the harsh working

environment of the construction machinery on the ground, the use of our support pads can effectively avoid the occurrence

of severe accidents.

The support pad consists of a plate-shaped pad body and a hand rope. The plate-shaped pad body is pressed with

UHMW/HDPE polymer synthetic materials, replacing wood and steel, saving costs and increasing quantity,

and it is more flexible to use.

Size

Thickness(inch)	Pad Size(inch)	45°Load (tons)	Vertical Load(tons)	Pad Weight(kgs)
2"Square	18x18	14	26	10.30
2"Rectangle	20x24	18	28	15.26
2"Square	24x24	18	28	18.31
2"Square	30x30	19.5	38	28.62
2"Square	36x36	20	44	41.20
2"Square	48x48	25	63	73.25
2"Round	30"Dia	15	30	22.47
2"Round	36"Dia	16	32	32.33
2"Round	48"Dia	19	45	57.51
2-1/2"Square	24x24	17.5	28	22.89
2-1/2"Square	30x30	19	39	35.76
2-1/2"Square	36x36	20	45	51.50
2-1/2"Square	48x48	24	60	91.56
2-1/2"Round	30"Dia	15	29	28.09
2-1/2"Round	36"Dia	15.3	33	40.41
2-1/2"Round	48"Dia	19	46	71.88
3"Square	24x24	18	29	27.47
3"Square	30x30	20	40	42.92
3"Square	36x36	22	47	61.80
3"Square	48x48	26	66	109.87
3"Round	30"Dia	15	30	33.70
3"Square	36"Dia	16	36	48.49
3"Square	48"Dia	20	51	86.26
Other size can be customized as your requirement.

Color

black,yellow,green, red, white, orange, grey, blue

Applications

uhmw cribbing block

Xinxing Crane Outrigger Pad can be used not only as crane leg pads,but also the trailer plates,sleeper of heavy machinery track mats of heavy trucks.The pads are strong and solid designed to support your crane.
Crane outrigger pad put under the support-leg of Truck Crane,Crawler Crane,Rough Crane,Boom Pump,Concrete Pump.Fire Truck,Utility Truck,Tree Trimmer,Any Type of Aerial Equipment and so on,for making the machine work safely!
