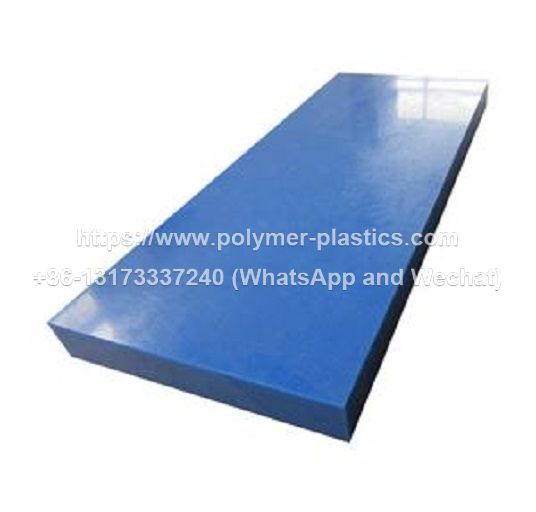

uhmwpe hopper liner :

Lining sheet is a cross linked and glass filled UHMW-PE material that has been modified to enhanced wear resistance for applications where abrasion is a significant factor.

UHMWPE lining sheets assist to reduce typical flow problems of bulk solids in bins, hoppers, chutes, truck beds and other applications. However, every application, brings with it unique challenges and places special demands on the plastic lining materials.

UHMW-PE excellent properties:
◇ very low dynamic friction coefficient
◇ extreme wear resistance (200% higher than stainless steel)
◇ resistance to chemicals
◇ corrosion resistance
◇ high impact strength (up to 170kJ/m㎡）
◇ service temperature range -260℃ to + 80℃

Benefit of UHMW-PE as a lining material:
◇ no incrustations of bulk material
◇ no bridging caused in hoppers
◇ enhanced protection of plant and machinery against wear
◇ faster bulk material flow
◇ cost of lining exist hopper with UHMW-PE is 1/3 of the mild steel
◇ light weight, 1/2 weight of steel

Applications:
◇ Belt scrapers
◇ Bunk liners & cyclones
◇ Chain conveyor flights
◇ Chute liners
◇ Dust collection hopper liners
◇ Dragline buckets
◇ Front end loader bucket liners
◇ Offroad truck beds
◇ Railcar liners

hardwoods and other plastics in wear applications. Ultra-Slide excels as long-lasting liners, bumpers, wear plates and fabricated parts.

Ultra-Slide UHMW is more than 3 times as resistant as nylon 6/6, and over 5 times as resistant to abrasion as high density polyethylene and steel. It tolerates extended contact with solids, slurries, rollers, chain and other abrasives better than other surfaces.

LOW FRICTION - Ultra-Slide UHMW is very low friction, .15 or less, giving it a slick, non-stick quality. It allows clean, ininterrupted operation/flow in dry, wet and freezing conditions. Materials pass over Ultra-Slide without adhesion and buildup. Barnacles wipe away from Ultra-Slide UHMW.

IMPACT RESISTANT - Ultra-Slide UHMW is virtually unbreakable. One inch thick is able to stop a .45 calibur bullet at 25 feet and displays zero notch sensitivity in conventional lab testing.

CORROSION RESISTANT - Ultra-Slide UHMW absorbs no water and is impervious to most chemical attack, including strong oxidizing agents. It resists bacterial growth and can be stabilized against ultraviolet degradation for extended use out side.

3000x1500mm

2440x1220mm

2000x1000mm

2000x1300mm

thickness can be 10mm and 12mm

green, blue, black, white

1.It can be used in Shipbuilding, steel, cement, thermal power, coking, coal, glass, chemicals, ceramics, automobile, textile, papermaking, machinery manufacturing, food and drug, beer accessories and other industries as the main market



2.Good lubrication and exceptional low abrasion coefficient character of UHMWPE sheet make it to be choosed to be the lining of many chute , coal bunker , truck liner , mixing silo lining and other project whose conveyor cohere easily when it been unloaded and delivered . Adopting UHMW-PE sheet as lining can help the company or operator save much time and money .



3.With a very low friction co-efficient and zero water absorption, UHMWPE lining are widely used to eliminate caking, bridging and hanging up of a variety of bulk materials in application extending through steel and cement production, mining and power generation. In new applications the use of UHMWPE liners facilitates shallower chute and hoper angles providing greater design freedom whilst in existing installations the simulation of steeper angles through a low friction co-efficient is often the solution to plant blockage problems.
