UHMW pe marine board dock fender sheet pe HDPE upe fender :

uhmwpe fender pad for kinds of rubber fender

cell rubber fender

cone rubber fender

cylindrical rubber fender

arch rubber fender

marine rubber fenders which are cost effective and efficient solutions to suit any operating environment, condition and requirement. The principle purpose of a rubber fender system is to protect the hull and berthing facility from damage when vessels berth alongside. The fender functions as a shock absorber by absorbing the berthing energy of a vessel on berthing facility. There are many service factors which must be taken into consideration when making a decision on which type and size of fender is best suited for a given application, type of pier structure, type and size of vessel, berthing velocity of vessel, method of berthing, sea currents and wave action. Some of the most common types of marine fenders

Inquire Now Next Product

Description

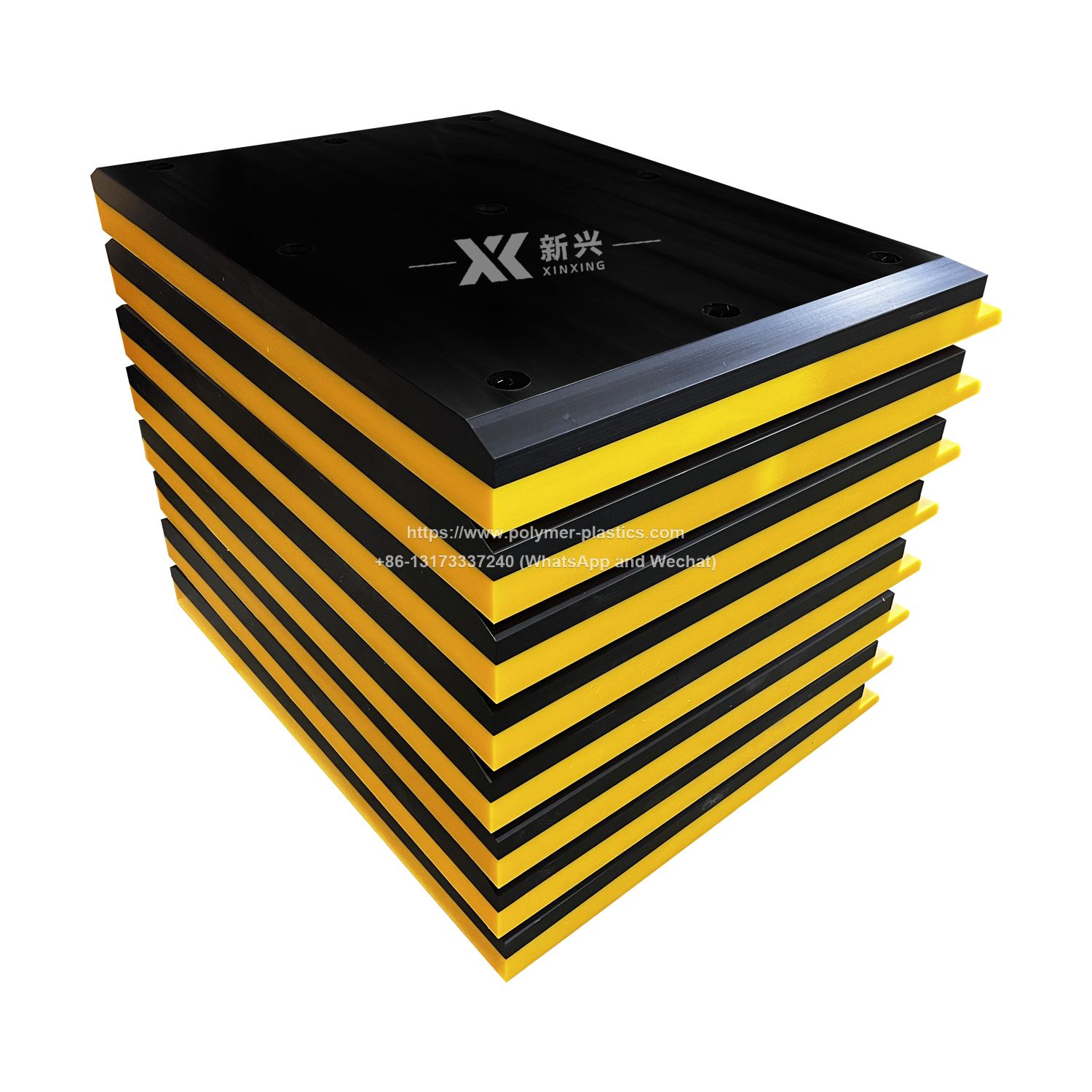

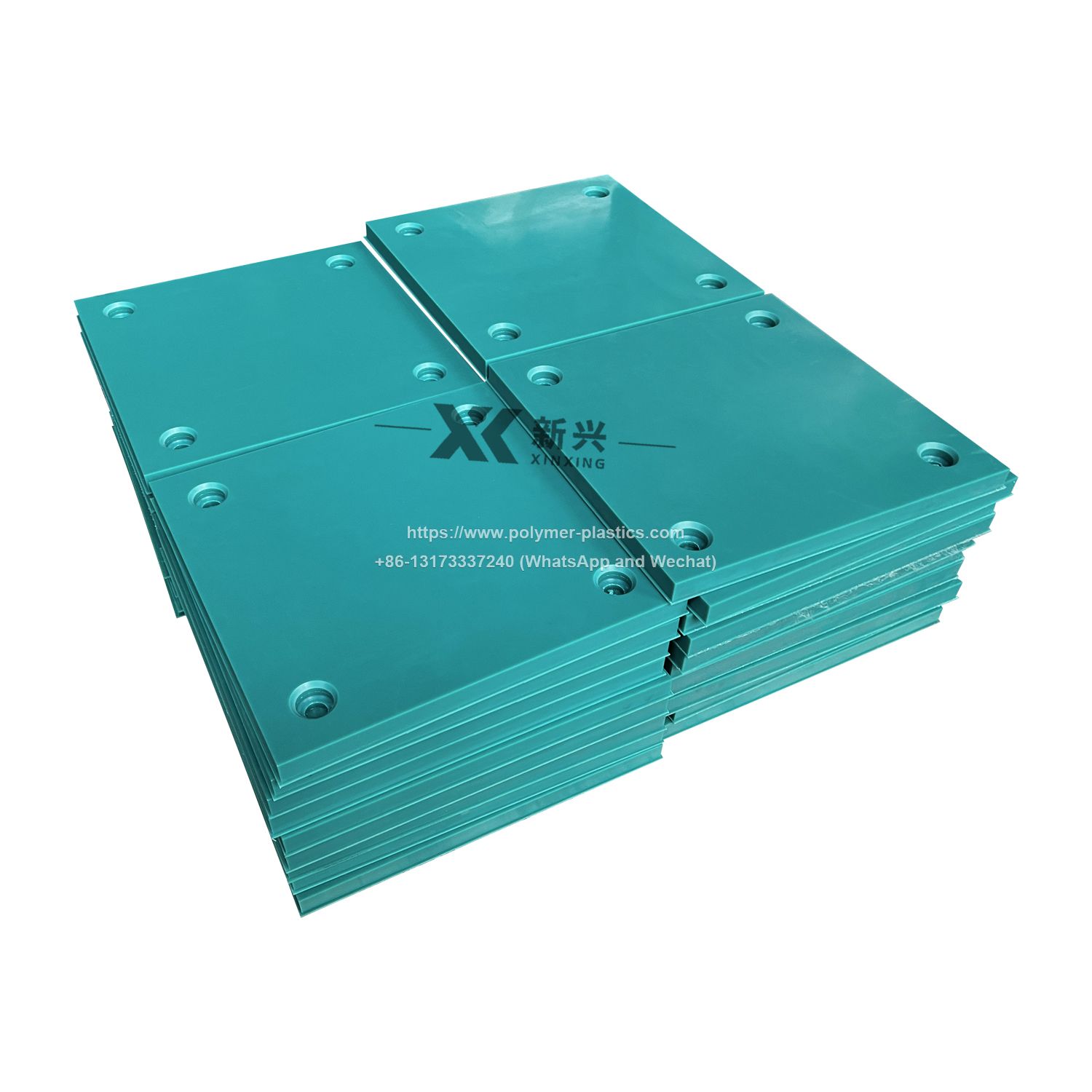

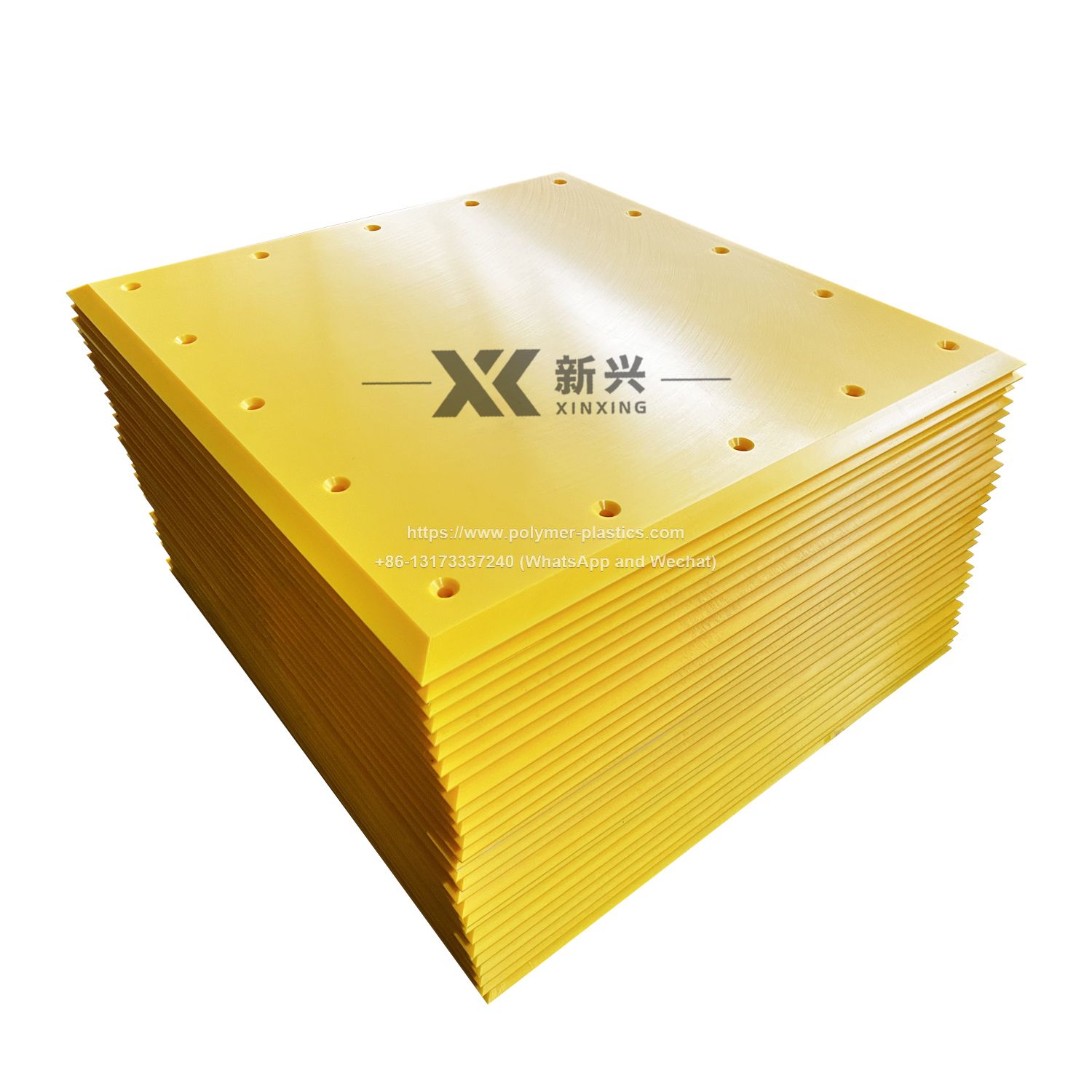

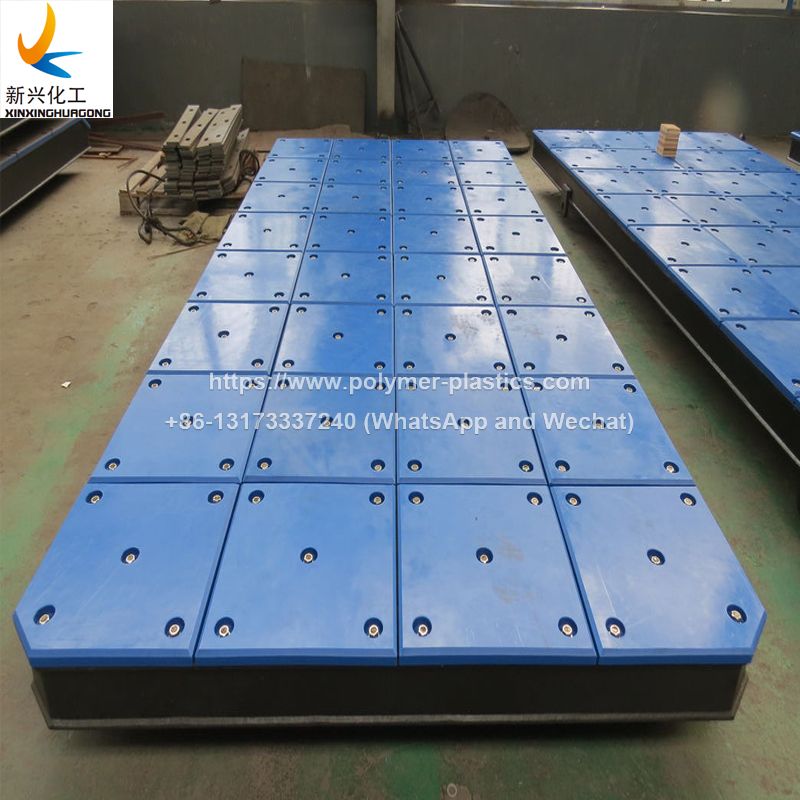

Marine fender face pad

 The ultra-high molecular weight polyethylene marine fender face pad has the advantages of light weight, impact resistance, wear resistance, corrosion resistance, low temperature resistance, impact energy absorption, ultraviolet resistance, aging resistance, small friction coefficient, and effective resistance to ultraviolet radiation. Its impact strength is 20 times that of polyethylene chloride, 10 times that of nylon 66 and 8 times that of PTFE. It has wide applicability and can also be used as a ship anti-collision device. Low reaction force, small surface pressure, reasonable energy absorption, strong adaptability to rolling and pitching when the ship is berthed, and prevention of collision of the side shell plate of the ship during berthing or mooring.It can effectively prevent the impact of ultraviolet radiation and impact on the hull and wharf, and its installation and maintenance are simple and convenient.

UHMW pe marine board dock fender sheet pe HDPE upe fender

Feature of Marine fender sliding pads:

1. Highest abrasion resistance of any polymer, 6 times more wear resistance than steel

2. Anti-weather & anti-aging

3. Self-lubricating and very low coefficient of friction

4. Excellent chemical & corrosion resistant; Stable chemical property and can endure the corrosion of all kind of corrosive medium and organic solvent in certain range of temperature and humidity.

5. Superior impact resistant, noise-absorption and vibration-absorption;

Low water absorption <0.01% water absorption and not affected by temperature.

6. Temperature range: -269℃~+85℃;

Very high resistance to cold, doesn't become fragile even under -180℃.

8. Non-toxic and no odor

9. UV resistance and long service life

10. Good performance in resisting environment stress crack

Size

497x497x40mm

1000x1000x40mm

thickness can be 30mm, 40mm, 50mm

many sizes and colors are available, we can CNC machine and finish fender pads per clients' drawings completely

Color

orange,yellow, green, blue, red, white, black, grey

Applications

Applications of fenders

1.Harbor Construction Boats
2.Individual profiles on quay walls
3.Rubbing Strips
4.Wear Pads to cover wood and rubber
5.Low friction bushings
6.Truck Docks Pilings
7.Fenders for dock plate protection

8.Wear plates and slides
9.Dredges
10.Floating Docks
11.Slide wall fenders to protect
12.Wear plates where dock meets pillage
13.dredge from barges
14.Bushings for pivots
