Quay concrete wall shockproof rubber fenders with frontal UHMWPE in very good wear resistance :

green color UHMWPE fender facing panel

uhmwpe fender pad for kinds of rubber fenders

cell rubber fender

cone rubber fender

cylindrical rubber fender

arch rubber fender

marine rubber fenders which are cost effective and efficient solutions to suit any operating environment, condition and requirement. The principle purpose of a rubber fender system is to protect the hull and berthing facility from damage when vessels berth alongside. The fender functions as a shock absorber by absorbing the berthing energy of a vessel on berthing facility. There are many service factors which must be taken into consideration when making a decision on which type and size of fender is best suited for a given application, type of pier structure, type and size of vessel, berthing velocity of vessel, method of berthing, sea currents and wave action. Some of the most common types of marine fenders

Inquire Now Next Product

Description

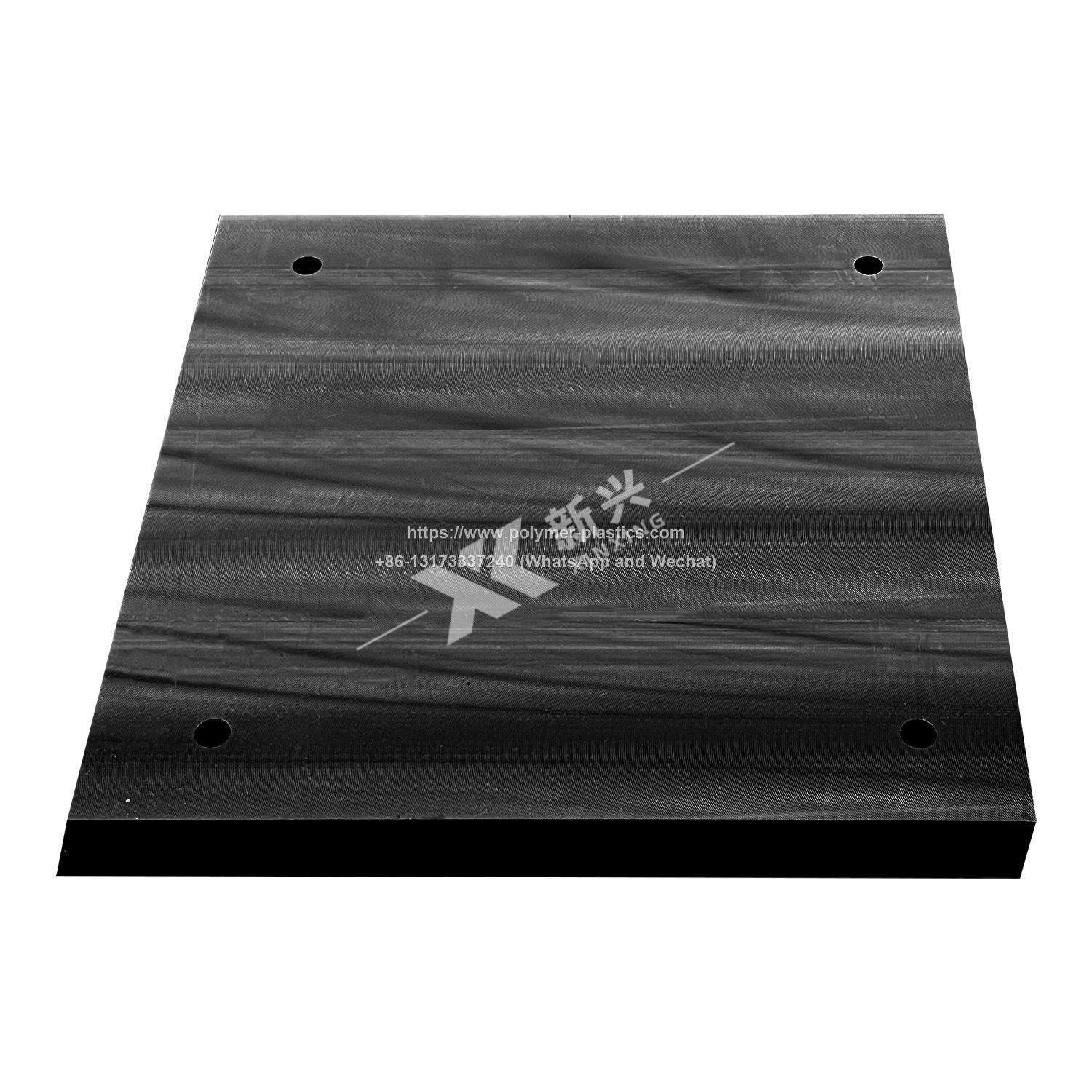

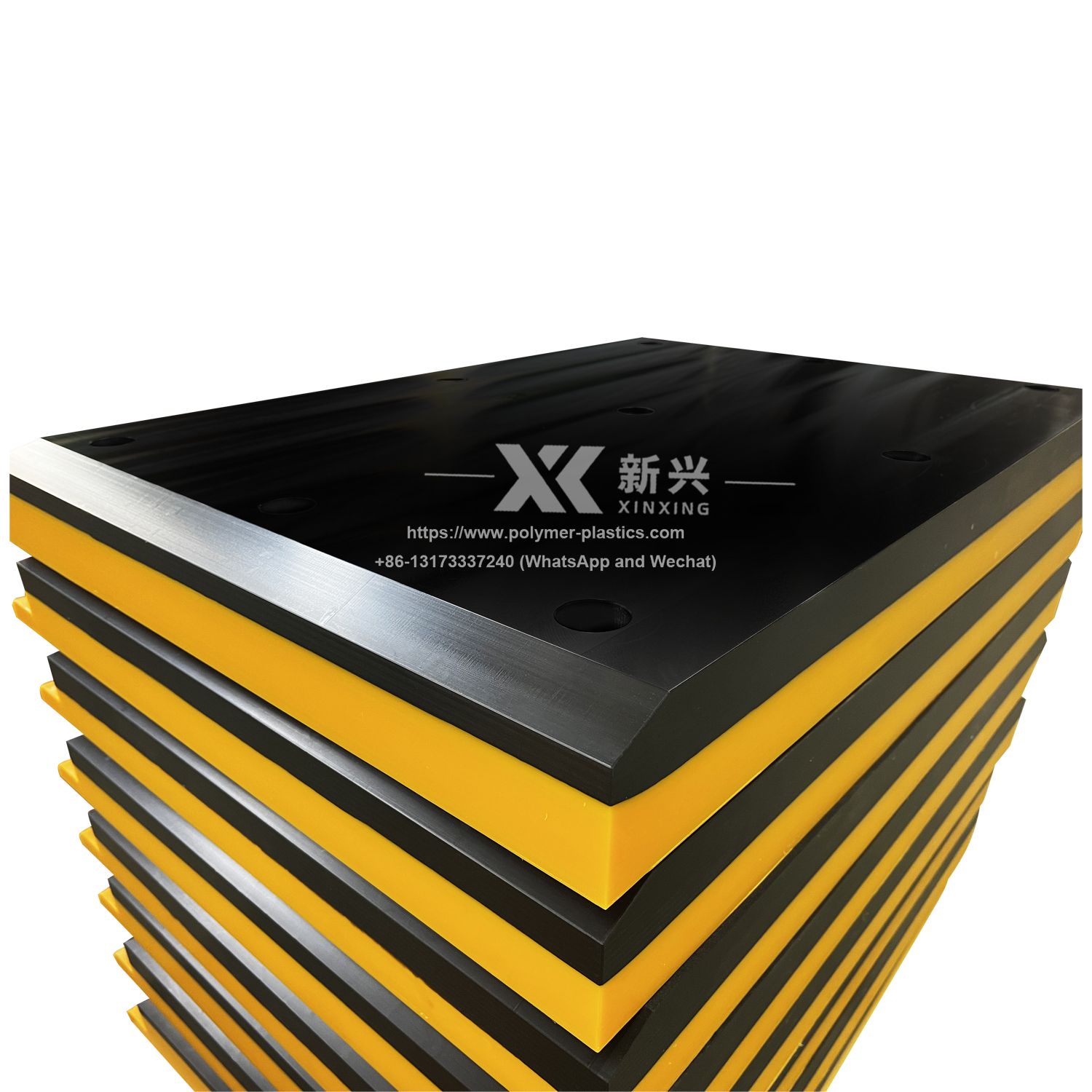

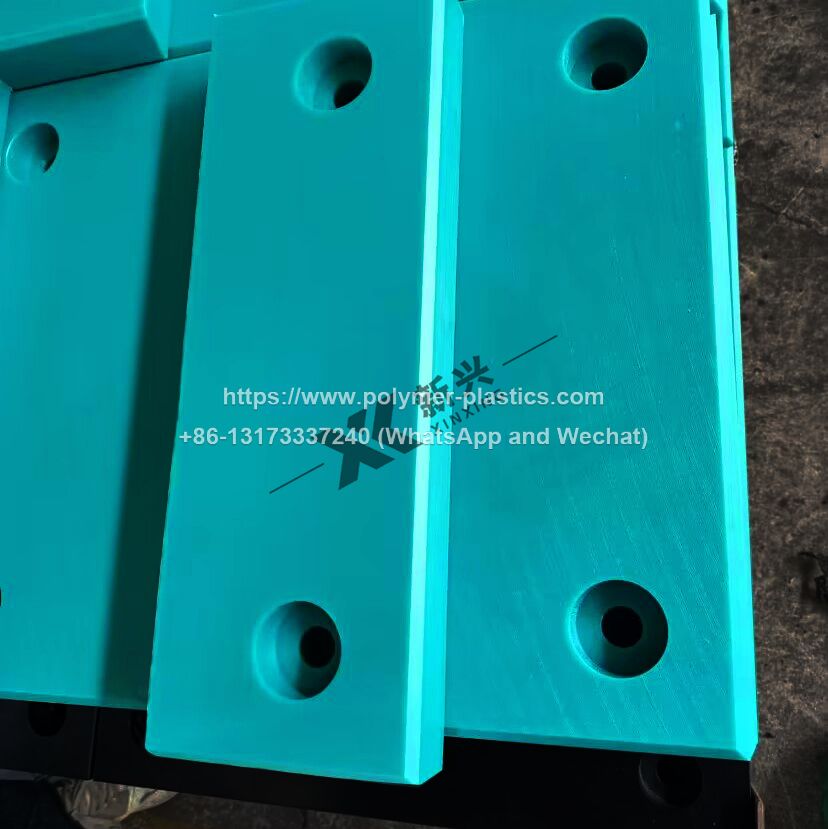

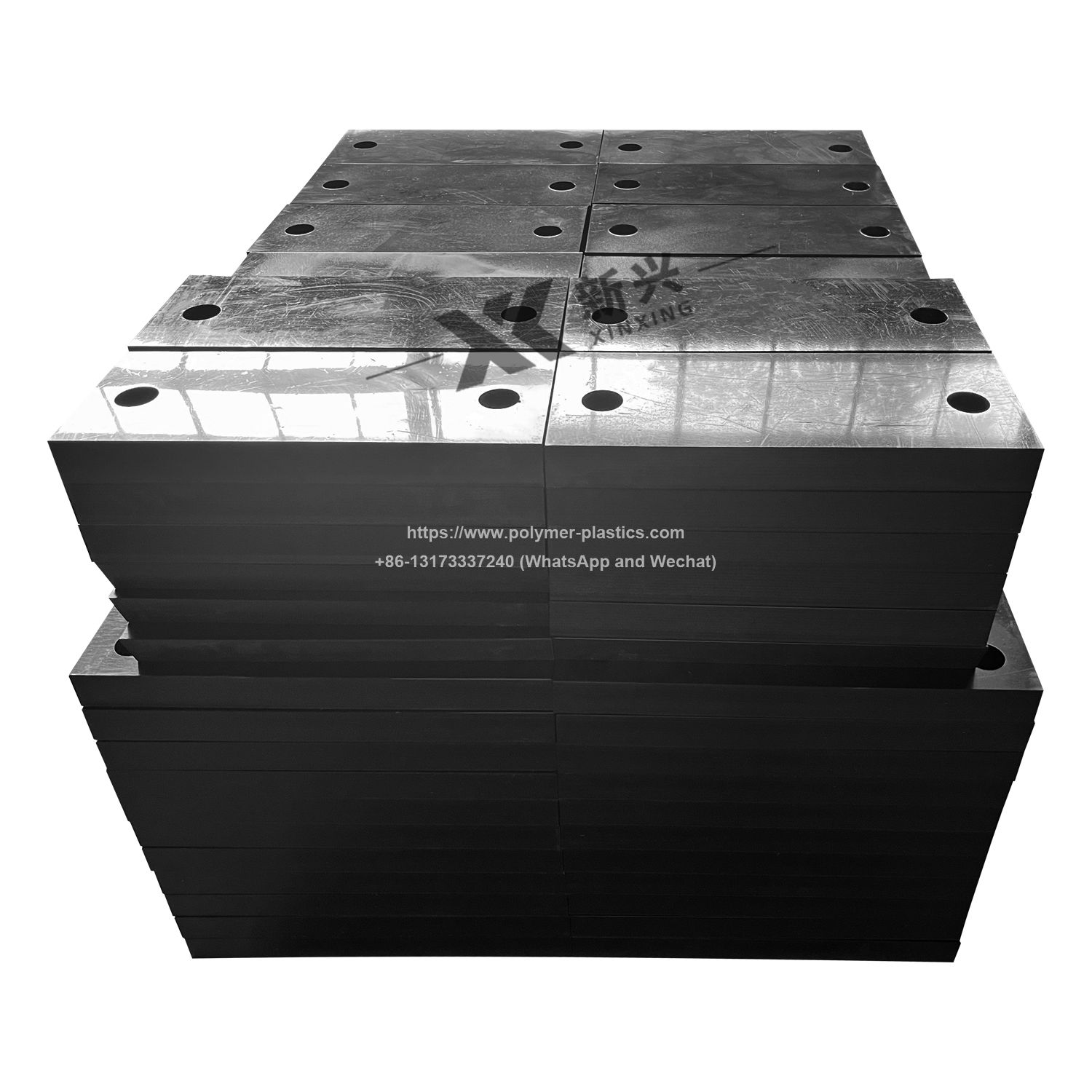

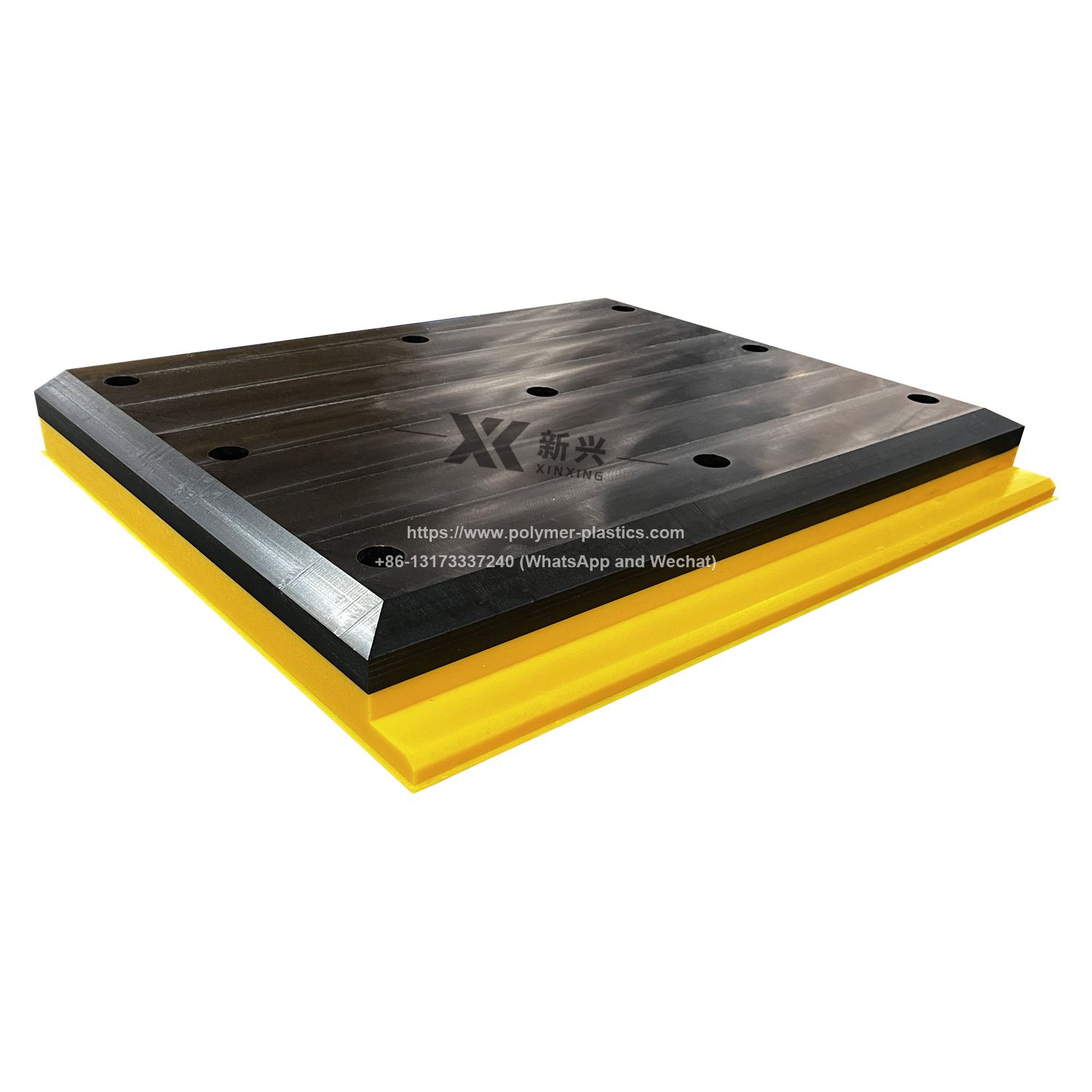

Uhmwpe fender facing pad/uhmwpe polyethylene fender pads/low resistance sliding boards

The UHMWPE possesses a low coefficient of friction which provides a smooth sliding surface for the vessel to travel along the fender face. UHMWPE comes in many colors and thicknesses per project requirements and also can be provided in a re-processed grade for a more economical solution. UHMWPE fender panel have many properties like light weight, impact resistance, wear resistance, corrosion resistance UV resistance, aging resistance, small coefficient of friction. It's impact strength is 20 times of PVC, 10 times of nylon 66, 8 times of PTFE. UHMWPE fender panel: low reaction force, less surface pressure and reasonable capability of energy absorption, reasonable installation and maintenance.

Feature of Marine fender sliding pads:

1. Highest abrasion resistance of any polymer, 6 times more wear resistance than steel

2. Anti-weather & anti-aging

3. Self-lubricating and very low coefficient of friction

4. Excellent chemical & corrosion resistant; Stable chemical property and can endure the corrosion of all kind of corrosive medium and organic solvent in certain range of temperature and humidity.

5. Superior impact resistant, noise-absorption and vibration-absorption;

Low water absorption <0.01% water absorption and not affected by temperature.

6. Temperature range: -269℃~+85℃;

Very high resistance to cold, doesn't become fragile even under -180℃.

8. Non-toxic and no odor

9. UV resistance and long service life

10. Good performance in resisting environment stress crack

Size

497x497x40mm

1000x1000x40mm

thickness can be 30mm, 40mm, 50mm

many sizes and colors are available, we can CNC machine and finish fender pads per clients' drawings completely

Color

orange,yellow, green, blue, red, white, black, grey

Applications

Cone Rubber Fender

Cell Rubber Fender

Arch Rubber Fender

Cylindrical Rubber Fender

Fender panel (frame) face pads

Rubbing strips

V-fender shields

Lock entrance and wall protection

Bridge buttress protection Beltings on workboats

port/dock/pier/berth/jetty/quay/wharf/ defenses

breasting and mooring dolphins

breasting & mooring dolphins

concrete dolphins

installation of fenders and concrete repair

installation of fenders at coal plant jetty

rehabilitation of Jetty

marine fendering
