Marine Fender Face Pad Uhmwpe Sheet Dock Bumper Sliding Boards :

cell rubber fender

cone rubber fender

cylindrical rubber fender

arch rubber fender

Marine rubber fenders which are cost effective and efficient solutions to suit any operating environment, condition and requirement. The principle purpose of a rubber fender system is to protect the hull and berthing facility from damage when vessels berth alongside. The fender functions as a shock absorber by absorbing the berthing energy of a vessel on berthing facility. There are many service factors which must be taken into consideration when making a decision on which type and size of fender is best suited for a given application, type of pier structure, type and size of vessel, berthing velocity of vessel, method of berthing, sea currents and wave action.

Inquire Now Next Product

Description

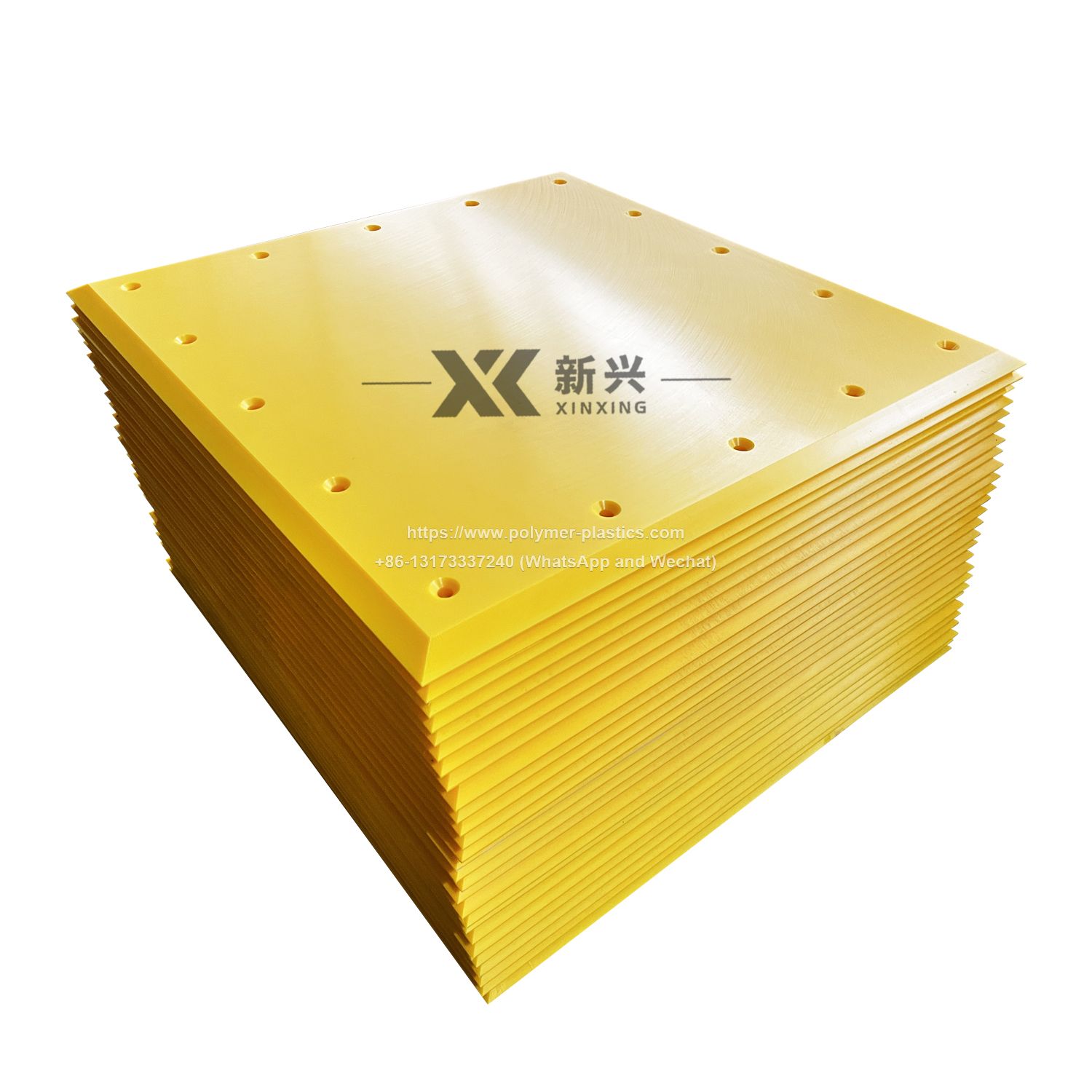

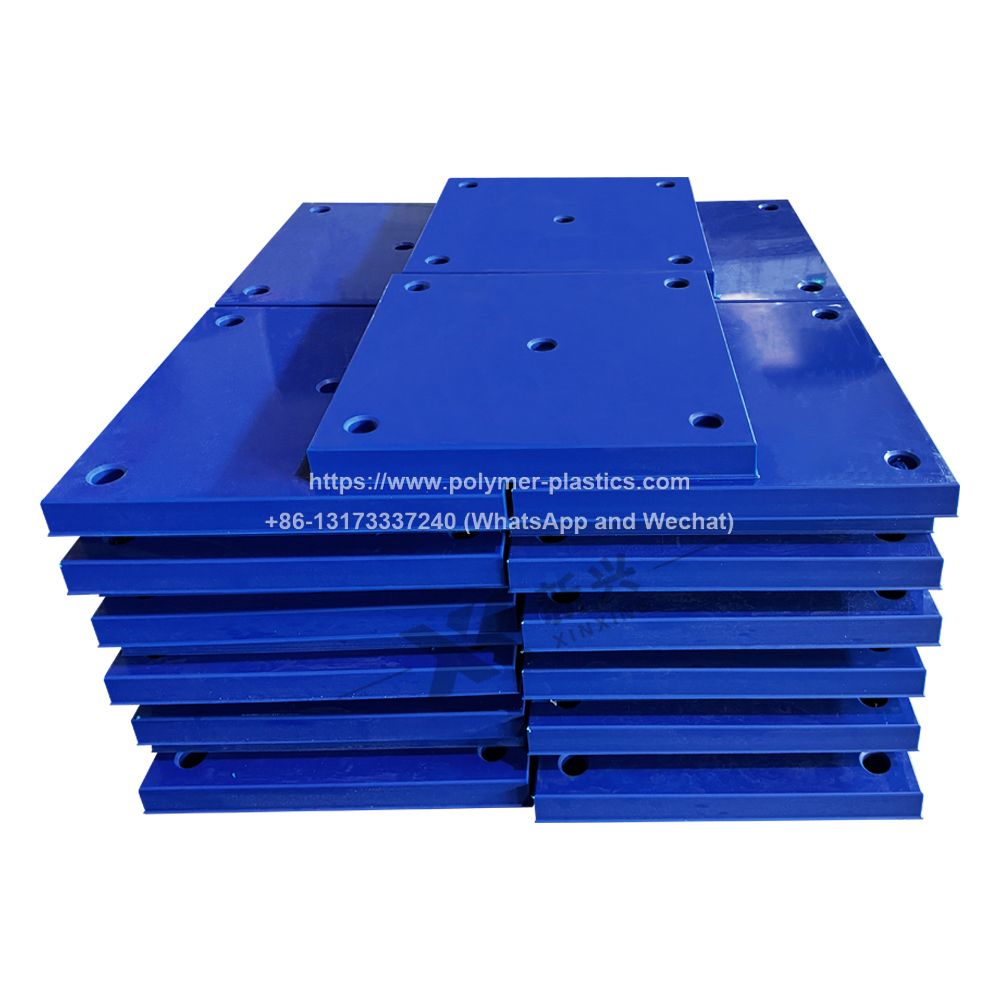

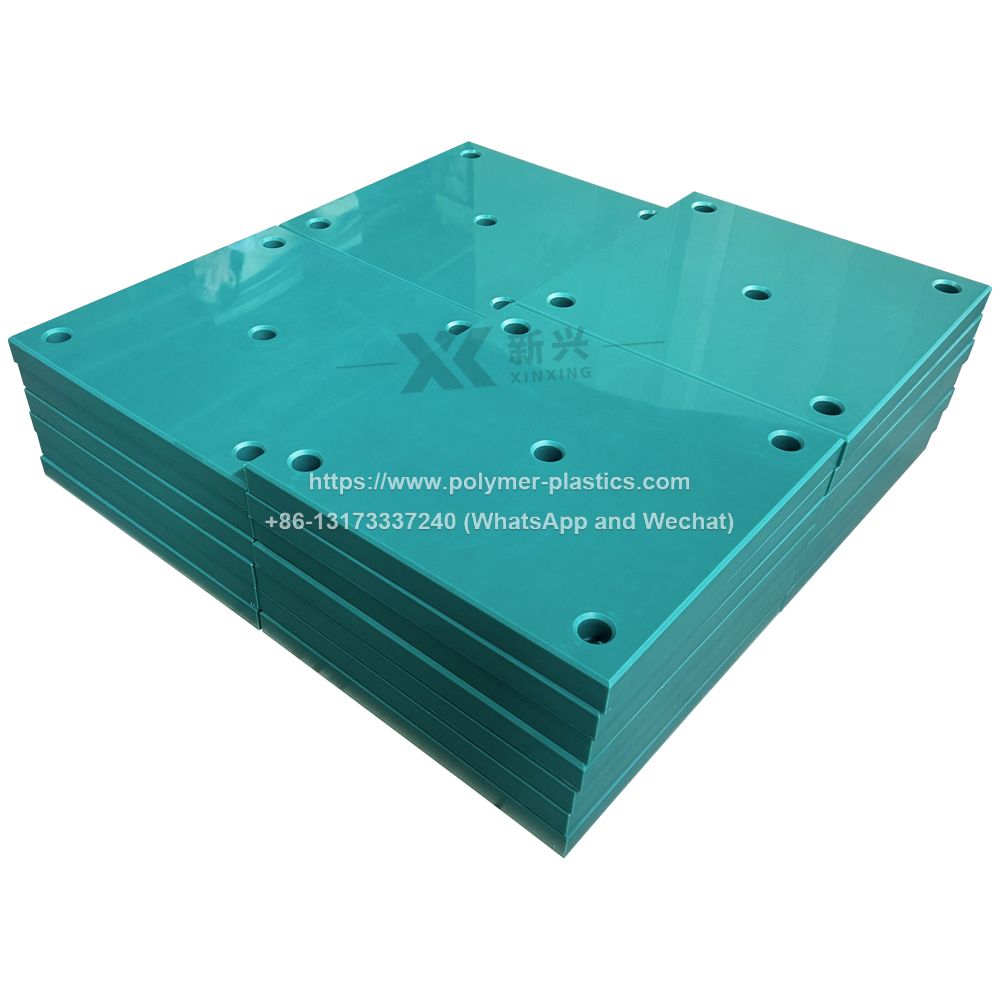

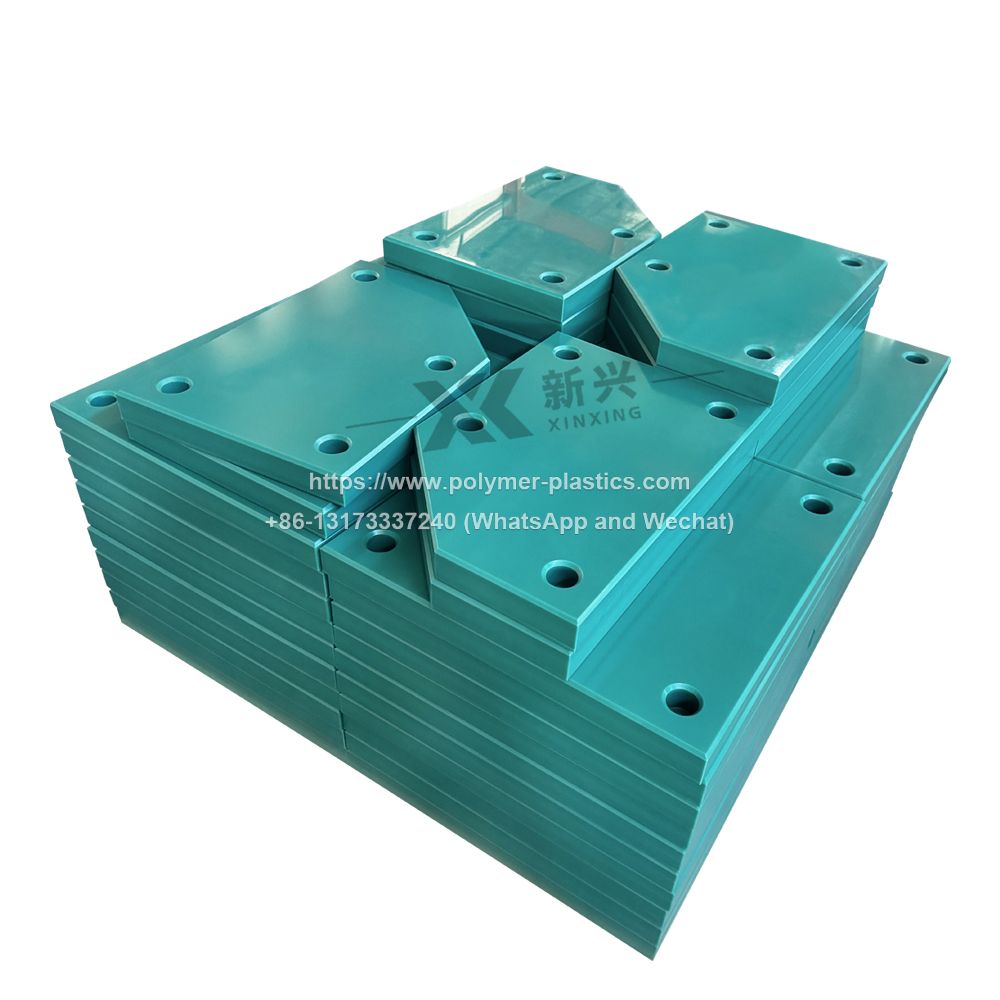

Marine Fender Pad

Marine fender is also called dock fender. It's made to protect the dock's equipment and boats approaching .Without dock fender, the boat which is approaching will directly impact the dock's border. It may violently make a great damage of dock's border. Then we have to repair it in order that other boats can well use it. As people said, adding dock fender for boats is necessary.

The role of our UHMW-PE wear plastic plate polyethylene dock fender panel / high impact uhmwpe marine fender pad:

* Fender: A bumper used to keep boats/ships from banging into docks or each other

* Sea Water: The Most Corrosive water in the world which can corrode anything

* Ships/ Boats: Quite heavily loaded, generate very high impact if banged with any fender

* Properties Required: ZERO Absorption of Water - UHMW PE Highly Resistant with Sea Water - UHMW PE Impact Strength is required, should not break or crack in case it bangs with ship/boat - UHMW PE

* THE BEST SOLUTION: UHMW PE Sheets as facial pad of Marine Fender is the application where most of the UHMW PE properties are exploited.

Marine fender sliding pads for the dock and ports. UHMWPE Corrosion and Impact resistant.

Feature of Marine fender sliding pads:

1. Highest abrasion resistance of any polymer, 6 times more wear resistance than steel

2. Anti-weather & anti-aging

3. Self-lubricating and very low coefficient of friction

4. Excellent chemical & corrosion resistant; Stable chemical property and can endure the corrosion of all kind of corrosive medium and organic solvent in certain range of temperature and humidity.

5. Superior impact resistant, noise-absorption and vibration-absorption;

Low water absorption <0.01% water absorption and not affected by temperature.

6. Temperature range: -269℃~+85℃;

Very high resistance to cold, doesn't become fragile even under -180℃.

8. Non-toxic and no odor

9. UV resistance and long service life

10. Good performance in resisting environment stress crack

Size

length(mm)	width(mm)	thickness(mm)
2000	1000	6-300
3000	1500	6-300
4700	1200	6-300
5000	1300	6-300
4500	2000	6-300
3050	1220	6-100

Color

black, yellow, blue, green, red, white, other colors are available upon request

Applications

Marine Fender Face Pad Uhmwpe Sheet Dock Bumper Sliding Boards

Cone Rubber Fender

Cell Rubber Fender

Arch Rubber Fender

Cylindrical Rubber Fender

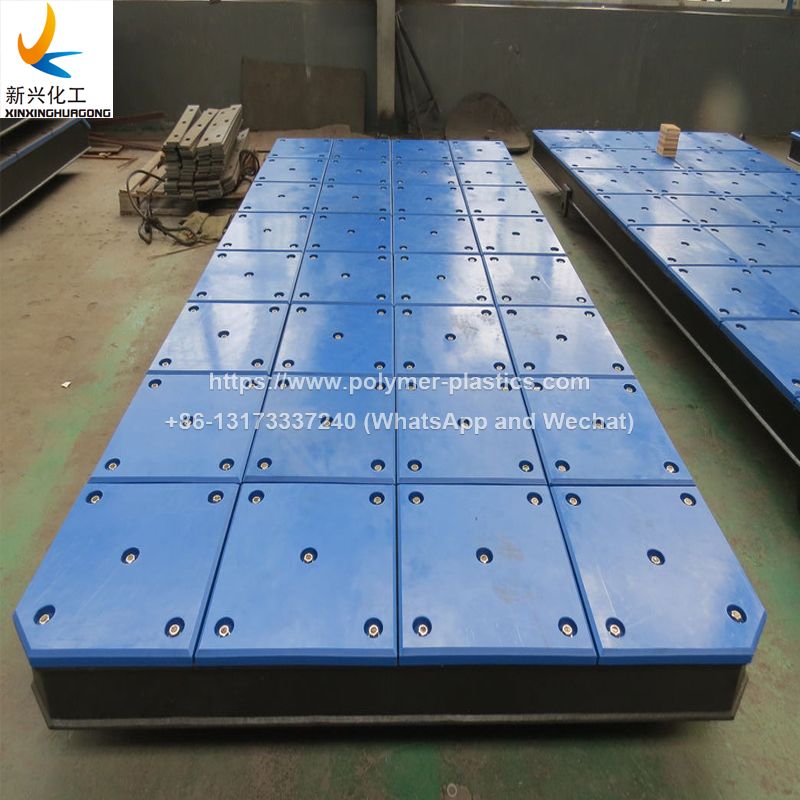

Fender panel (frame) face pads

Rubbing strips

V-fender shields

Lock entrance and wall protection

Bridge buttress protection Beltings on workboats

port/dock/pier/berth/jetty/quay/wharf/ defenses

breasting and mooring dolphins

breasting & mooring dolphins

concrete dolphins

installation of fenders and concrete repair

installation of fenders at coal plant jetty

rehabilitation of Jetty

marine fendering
