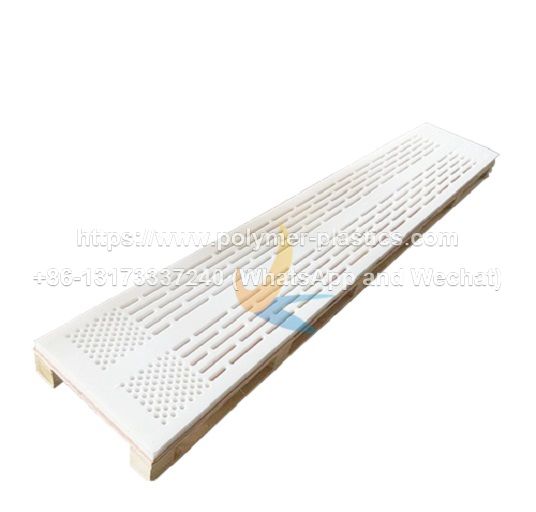

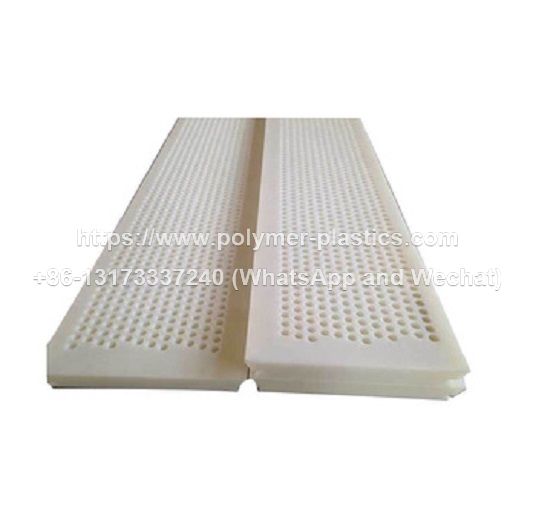

uhmwpe paper making machinery suction box panel :

uhmwpe suction box cover

uhmwpe suction box panel

uhmwpe paper and pulp mill

uhmwpe suction box cover for paper machine

uhmwpe paper making machinery suction box panel

Inquire Now Next Product

Description

paper machinery Dewatering elements:

1.Improve the service life of machinery after using UHMWPE dewater element.
2.Reduce the energy consumption of paper machinery.
3.UHMWPE has highly wear resistance, improving the service life and reducing the cost.
4.Abosn’s suction box covers and blades are made of UHMW-PE material .
Abosn’s dewatering elements in ultra high molecular weight polyethylene set themselves apart by the special sinter press procedure over a long period used to produce them;
5.As well as an extremely high molecular weight plus their extra additive that is specifically tailored to paper machines.
6.All these benefits ensure what is an outstanding service life for plastic coupled with a low coefficient of friction.
7.No adhesion Excellent chemical resistance.
8.Suction box covers, Forming boards, Foil covers, Doctor Blades, Scraper blades , Deflector blades, Profile strips etc.

parameters:

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Tensile strain at break	%	600
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	42
Shore D hardness	--	65-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient	--	≤0.16
Kinetic Friction Coefficient	--	≤0.10
Water Absorption	--	NIL
Elongation at break at 23 degress	%	≥300
Temperature resistance	°C	-269 to +85
Melt Temperature	°C	130-140

Size

3000x500x60mm

3000x400x50mm

3000x400x60mm

3000x500x40mm

many other sizes also available, made to order per clients' detailed request

Color

white, black, blue

Applications

suction box covers
dewatering elements
suction hydrofoil
Forming boards
Foil covers
Doctor Blades
Scraper blades
Deflector blades
Profile strips
