1800 X 900 X 12.7 GROUND MAT :

1800 X 900 X 12.7 GROUND MAT

Dimensions (mm) 1800 x 900 x 12.7

Load Capacity (tonnes) 40.00

Weight (kgs) 24.00

1800 X 900 X 12.7 GROUND MAT

Inquire Now Next Product

Description

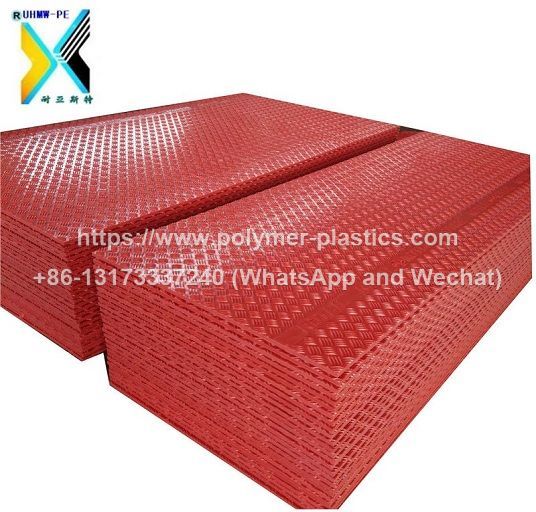

1800 x 900 x 12.7mm Ground Protection Mat

These lightweight and versatile extruded ground protection mats are ideal when moving vehicles or machinery across soft ground. Designed to be safely and quickly installed by two people, they can take loads of up to 65 tonnes and can be linked together to form a track way or large surface area using our Easy Join connectors.

Features include:

Size: 1.80 x 0.90m

Depth: 12.7mm

Non slip extruded finish on both sides

Each extrusion measures 8mm in height providing a superior grip for vehicles or machinery

4 integrated handles

Produced from extremely high quality, High Density Polyethylene (HDPE)

Offers protection against water, corrosion and splintering

Suitable for most vehicle, crane and equipment chassis

Advantages:

1. Extremely high anti-abrasion

2. Good in resisting impact, flexibility

3. Being excellent in resisting chemical corrosion (acid, alkali, salt)

4. Being free from toxin, smell or exudates.

5. Low in water absorption

6. Low coefficient of anti-aging

7. Resisting environment and anti-aging

8. Resisting high and low temperature

9. UV resistance

10. Low cost

Size

1220*2440mm(4'*8') 910*2440mm(3'*8') 610*2440mm(2'*8')

910*1830mm(3'*6') 610*1830mm(2'*6') 610*1220mm(2'*4')

Color

black, green, yellow, red, white, grey, blue

Applications

ground mat can be used in differnent field including construction sites, golf courses, utilities, landscaping, tree care, cemeteries and so on. Professional mat provide you with professional service.

Data Sheet

Material Specification	Test Method	Test Result
Density	ISO1183-1	0.95-0.98 g/cm³
Yield strength	ASTM D-638	25 MPa
Ultimate strength	ASTM D-638	45 MPa
Tensile strength	ASTM D-638	5900 Psi
Tensile modulus of elasticity	ASTM D-638	116500 Psi
Breaking elongation	ISO527	>50
Impact strength	ISO179	No Breaking
Shore hardness	ISO868	64-67 Shore D
Abrasion	ISO15527	83 Steel=100
Melting point	ASTM D-3417	138ºC
Coefficient of thermal expansion	ASTM D-696	0.0002ºC
Friction coefficient (static state)	ASTM D-1894	0.11
